Rippa R150 Large Excavator
Rippa R150 large excavator has become a leader in the excavator market with its powerful power system, efficient hydraulic system, rugged and durable structural design, comfortable driving environment, wide range of applications and environmentally friendly emission performance, meeting the diverse needs of different customers.
Features

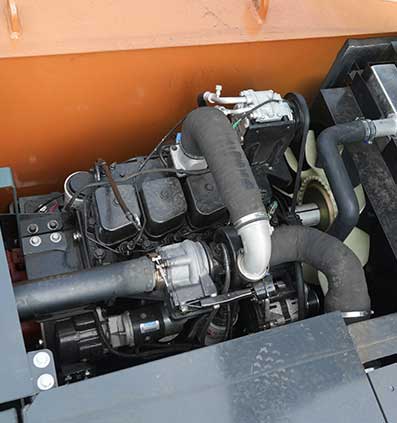

Energy-efficient engine
Using Isuzu or Cummins Euro V engines, high power and high performance of core components, it continues to maintain Maintaining the performance advantages of the previous generation product; the engine cylinder combustion temperature is high, the fuel efficiency is significantly improved, and the power is strong; the exhaust gas emissions are environmentally friendly.

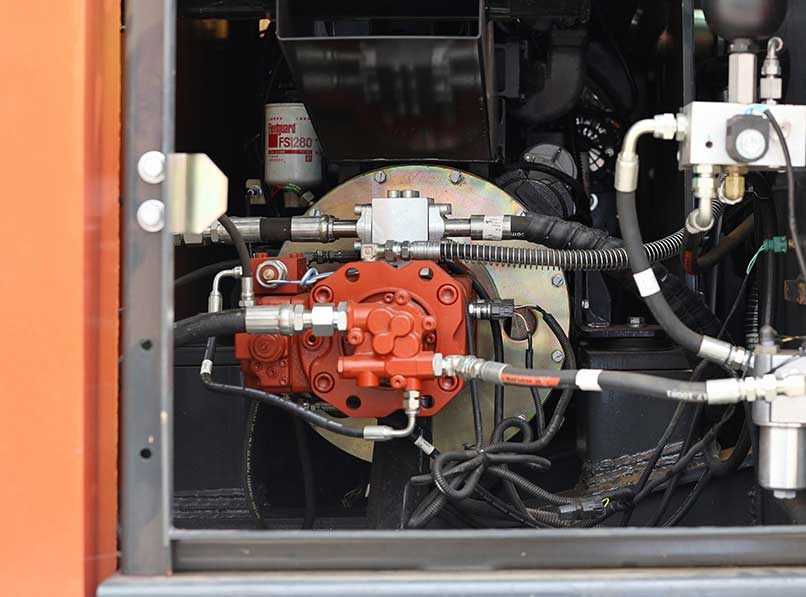

Hydraulic system
The hydraulic oil pump and other oil filtration systems are used to improve fuel filtration performance, greatly increase fuel usage, reduce system energy loss, effectively reduce fuel consumption, and save 7% fuel compared to the previous generation of models.
Central swing motor
The central rotary motor adopts a well-known foreign brand with stable performance and durability.
Multipurpose Tool Carrier
The Rippa R150 large excavator has become a leader in the excavator market with its powerful power system, efficient hydraulic system, sturdy and durable structural design, comfortable driving environment, wide range of applications and environmentally friendly emission performance, meeting the diverse needs of different customers.

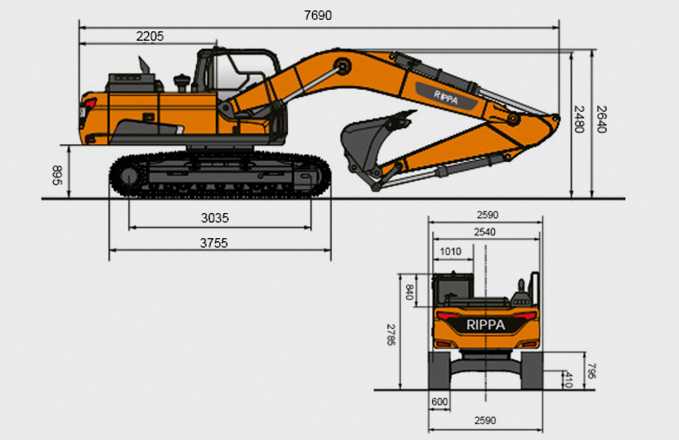

Full Specifications — R150
| Specification | US units | Metric (source) |
|---|---|---|
| Machine working weight | 33000 lb | 15000 kg |
| Bucket capacity | 9.5-26.8 ft³ | 0.27-0.76 m³ |
| Boom length | 181.2 in (15 ft 1.2 in) | 4602 mm |
| Arm length | 114.2 in (9 ft 6.2 in) | 2900 mm |
| Slewing speed | 11.9 rpm | |
| Travel speed (km\h) | 2.1-3.0 mph | 3.3-4.9 km/h |
| Bucket digging force | 17378-18299 Ibf | 77.3-81.4 kN |
| Arm digging force | 12971-14163 Ibf | 57.7-63 kN |
| Cab height | 111.5 in (9 ft 3.5 in) | 2832 mm |
| Tail slewing radius | 86.7 in (7 ft 2.7 in) | 2202 mm |
| Counterweight level | 36.3 in (3 ft 0.3 in) | 922 mm |
| Track length | 137.7 in (11 ft 5.7 in) | 3497 mm |
| Track width | 102.4 in (8 ft 6.4 in) | 2600 mm |
| Track shoe width | 23.7 in (1 ft 11.7 in) | 602 mm |
| Minimum ground clearance | 16.1 in (1 ft 4.1 in) | 408 mm |
| Maximum digging range | 344.2 in (28 ft 8.2 in) | 8742 mm |
| Maximum digging range on the ground | 338.7 in (28 ft 2.7 in) | 8602 mm |
| Maximum digging depth | 241.4 in (20 ft 1.4 in) | 6132 mm |
| Maximum unloading height | 257.2 in (21 ft 5.2 in) | 6532 mm |
| Maximum vertical wall depth that can be dug | 15 ft 3.1 in | 4652 mm |
| Engine | Cummins 4BT3.9 | |
| Power | 123.3 hp | 92KW |
| Multi-way valve | KYB | |
| Hydraulic pump | ZHTE | |
| Travel motor | ZHTE | |
| Slewing motor | ZHTE |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
