Rippa R420 Large Excavator
The manufacturer has inventory and delivers quickly. Customer service staff is online 24 hours a day.
Features
Energy-efficient engine
Equipped with Cummins or Doosan engines, it provides powerful power support with a rated power of 300kW/1800rpm. The high-efficiency engine combined with a large-capacity bucket and a reinforced mining chassis can comprehensively improve production capacity.
Comfortable and convenient driving environment
Adhering to the "driver-centric" design concept, the noise and vibration in the cab are greatly reduced. Equipped with an air-conditioning system to meet the needs of four-season operations and improve operating comfort and convenience. The centralized button design, including the rotary throttle, air-conditioning panel, auxiliary buttons and on-board radio station, improves the convenience of operation.

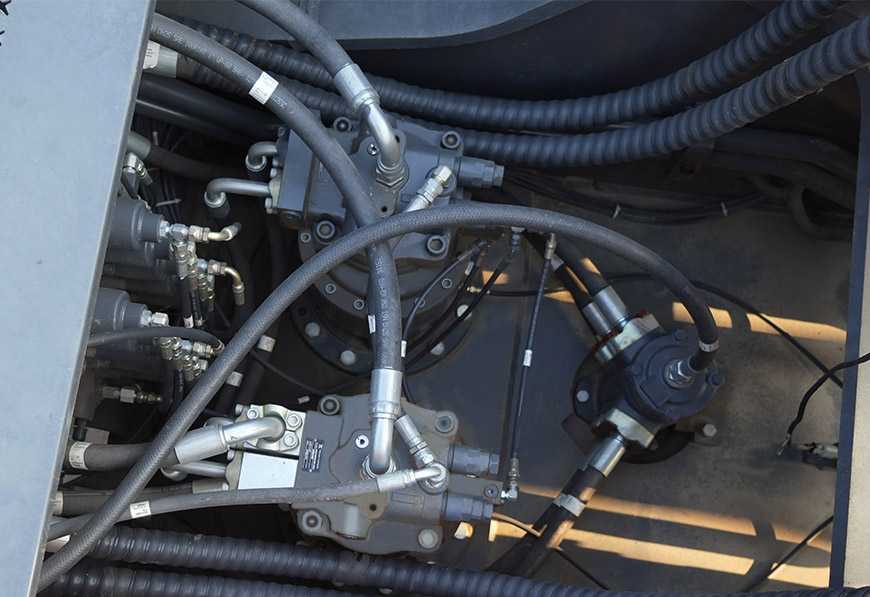

Reliable and durable branded components
The whole machine adopts the original imported engine, main pump, main control valve, travel motor and swing motor, with reliable performance. The structural components have been verified by the global market, adaptable to various complex working conditions, and durable.

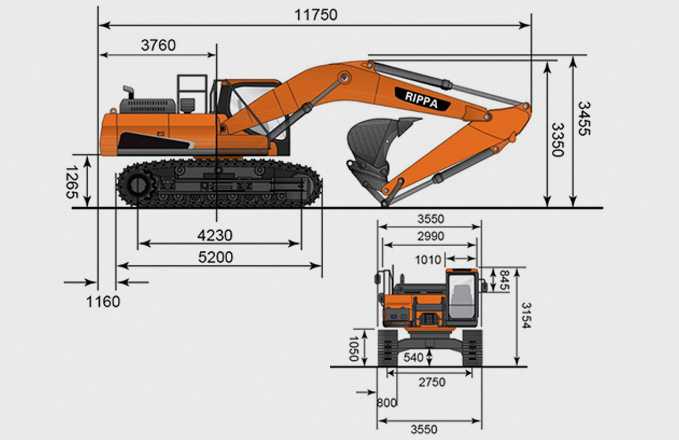

Full Specifications — R420
| Specification | US units | Metric (source) |
|---|---|---|
| Machine working weight | 88000 lb | 40000 kg |
| Bucket capacity | 60-67.5 ft³ | 1.70-1.91 m³ |
| Boom length | 256 in (21 ft 4.0 in) | 6502 mm |
| Arm length | 114.3 in (9 ft 6.3 in) | 2902 mm |
| Slewing speed | 8.4 rpm | |
| Travel speed | 1.7-3.1 mph | 2.8-5.0 km/h |
| Bucket digging force | 57281 Ibf | 254.8 kn |
| Arm digging force | 45411 Ibf | 202 kn |
| Maximum digging distance | 427 in (35 ft 7.0 in) | 10847 mm |
| Maximum digging distance on the ground | 418.8 in (34 ft 10.8 in) | 10637 mm |
| Maximum digging depth | 281 in (23 ft 5.0 in) | 7137 mm |
| Maximum digging height | 397.7 in (33 ft 1.7 in) | 10102 mm |
| Maximum unloading height | 282.8 in (23 ft 6.8 in) | 7182 mm |
| Maximum vertical digging depth | 150.1 in (12 ft 6.1 in) | 3812 mm |
| Total length for transport | 448.1 in (37 ft 4.1 in) | 11382 mm |
| Total width for transport | 132 in (11 ft 0.0 in) | 3352 mm |
| Total height for transport | 146.5 in (12 ft 2.5 in) | 3722 mm |
| Total height of cab | 126 in (10 ft 6.0 in) | 3202 mm |
| Ground clearance of counterweight | 49.3 in (4 ft 1.3 in) | 1252 mm |
| Rear end turning radius | 139.1 in (11 ft 7.1 in) | 3532 mm |
| Engine | Cummins QM11 | |
| Power | 284.1 hp | 212 kw |
| Multi-way valve | HF | |
| Hydraulic pump | Nakagawa/Kawasaki | |
| Travel motor | ZHTE | |
| Slewing motor | ZHTE |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
