Rippa R520 Large Excavator
Rippa R520 large excavator has significant competitive advantages in the excavator market with its core selling points such as high efficiency and energy saving, intelligent control, reliable and durable, comfortable and convenient, easy maintenance, safe and reliable, and perfect after-sales service. The manufacturer has inventory and delivers quickly. Customer service staff provides services online 24 hours a day.
Features

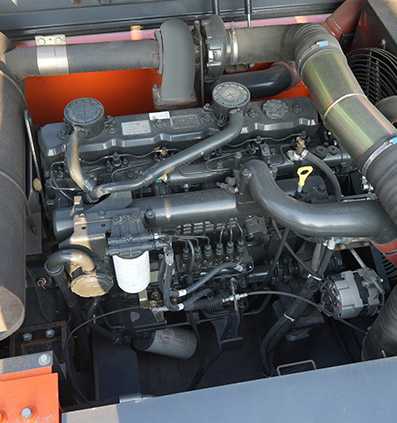

Energy-efficient engine
Equipped with Cummins or Doosan engines, it provides powerful power support with a rated power of 300kW/1800rpm. The high-efficiency engine combined with a large-capacity bucket and a reinforced mining chassis can comprehensively improve production capacity.

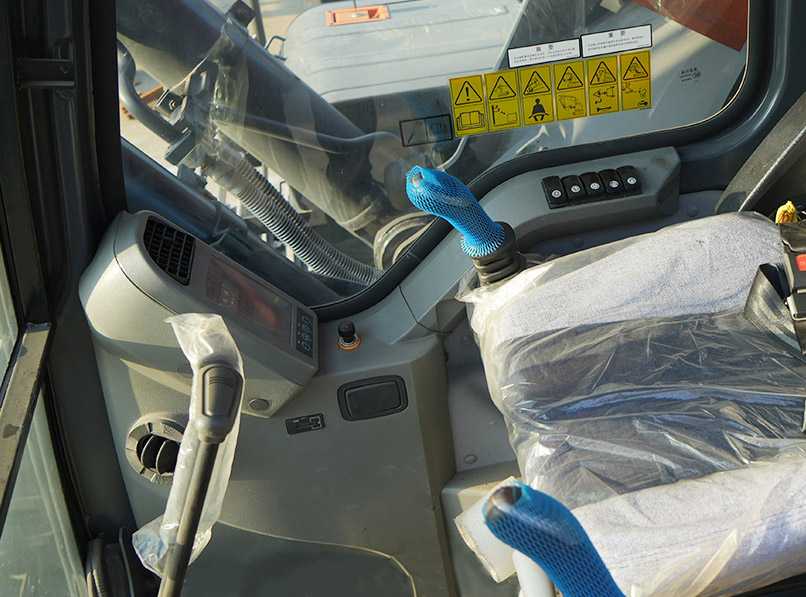

Comfortable and convenient driving environment
Adhering to the "driver-centric" design concept, the noise and vibration in the cab are greatly reduced. Equipped with an air-conditioning system to meet the needs of four-season operations and improve operating comfort and convenience. The centralized button design, including the rotary throttle, air-conditioning panel, auxiliary buttons and on-board radio station, improves the convenience of operation.

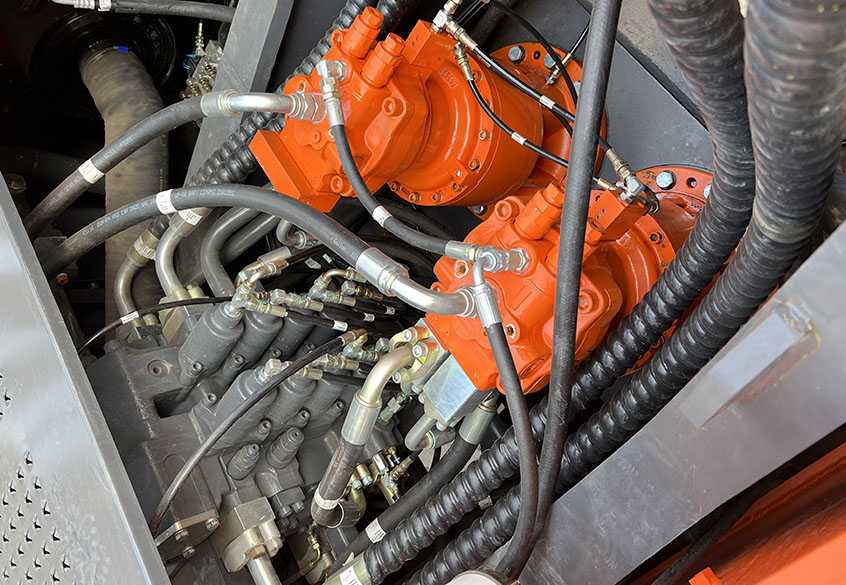

Multi-way valve and swing motor
The multi-way valve can be precisely controlled to improve work efficiency and reduce hydraulic loss; the benefits of the swing motor: 360-degree free rotation, smooth and precise rotation control to improve durability, the combination of the multi-way valve and the swing motor enables the excavator to maintain efficient and stable operating capabilities under complex working conditions, while increasing the flexibility and life of the equipment.
Multipurpose Tool Carrier
The RIPPA R520 excavator has significant competitive advantages in the excavator market with its core selling points of high efficiency, energy saving, intelligent control, reliability and durability, comfort and convenience, convenient maintenance, safety and reliability, and comprehensive after-sales service.

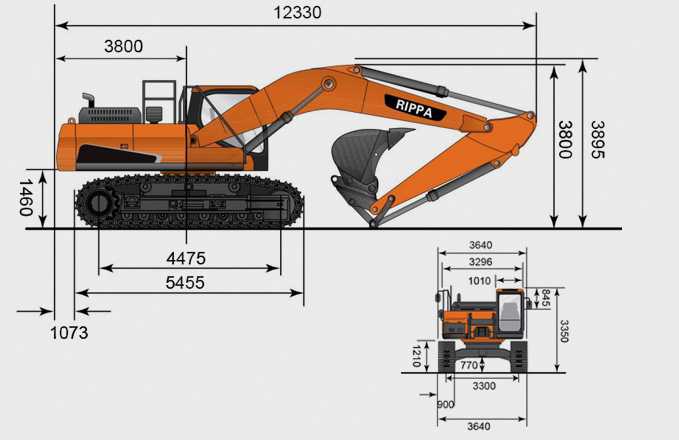

Full Specifications — R520
| Specification | US units | Metric (source) |
|---|---|---|
| Machine working weight | 111760 lb | 50800 kg |
| Bucket capacity | 76.6 ft³ | 2.17 m³ |
| Boom length | 279.5 in (23 ft 3.5 in) | 7100 mm |
| Arm length | 131.9 in (10 ft 11.9 in) | 3350 mm |
| Slewing speed | 8.9 rpm | |
| Travel speed | 1.86-3.48 mph | 3.0-5.6 km/h |
| Bucket digging force | 64340/68297 Ibf | 286.2/303.8 kn |
| Arm digging force | 47817/50672 Ibf | 212.7/225.4 kn |
| Maximum digging distance | 476.8 in (39 ft 8.8 in) | 12110 mm |
| Maximum digging distance on the ground | 467.1 in (38 ft 11.1 in) | 11865 mm |
| Maximum digging depth | 307.1 in (25 ft 7.1 in) | 7800 mm |
| Maximum digging height | 435 in (36 ft 3.0 in) | 11050 mm |
| Maximum unloading height | 311 in (25 ft 11.0 in) | 7900 mm |
| Maximum vertical digging depth | 173.2 in (14 ft 5.2 in) | 4400 mm |
| Total length for transport | 477.6 in (39 ft 9.6 in) | 12132 mm |
| Total width for transport | 131.6 in (10 ft 11.6 in) | 3342 mm |
| Total height for transport | 145.7 in (12 ft 1.7 in) | 3700 mm |
| Total height of cab | 131.9 in (10 ft 11.9 in) | 3350 mm |
| Ground clearance of counterweight | 57.4 in (4 ft 9.4 in) | 1458 mm |
| Rear end turning radius | 147.6 in (12 ft 3.6 in) | 3750 mm |
| Engine | Cummins QM11 | |
| Power | 344.3 hp | 257 kw |
| Multi-way valve | HF | |
| Hydraulic pump | Nakagawa/Kawasaki | |
| Travel motor | ZHTE | |
| Slewing motor | ZHTE |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
