Rippa R60 Small Excavator
The R60 small excavator has advantages in performance, comfort, economy, convenience, after-sales service, etc., and can meet the diverse needs of customers in the international market.
Features

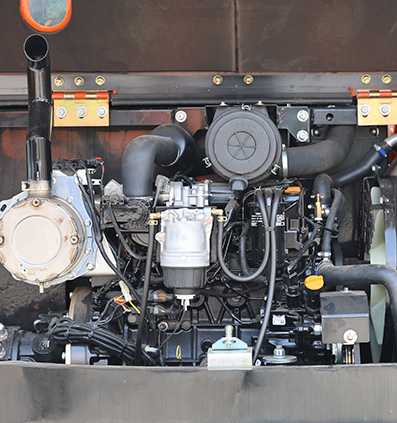

Energy-efficient engine
Equipped with Yanmar 4TNV94L engine, it has high efficiency and stable performance. It has been proven by the market and provides strong power support for driving. The electronically controlled hydraulic system is adopted to reduce fuel consumption by up to 7% and pursue efficient fuel economy. The main pump and main valve are electronically controlled to achieve precise control of hydraulic output, reduce system energy consumption loss, and significantly improve the fuel efficiency of the excavator.

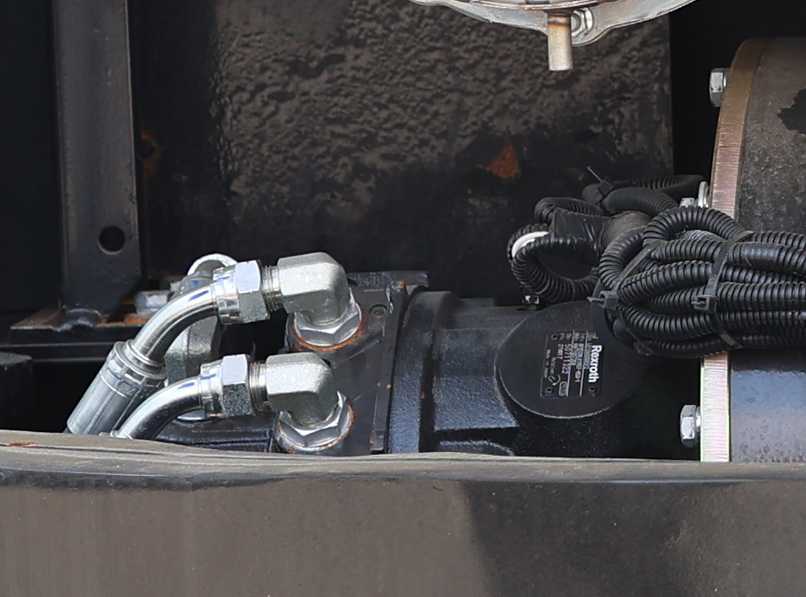

Doosan main pump
The Korean Doosan hydraulic oil pump and other oil filtration systems enhance the fuel filtration performance, greatly improve the fuel efficiency and utilization rate. The layout structure is more compact and maintenance is more convenient.

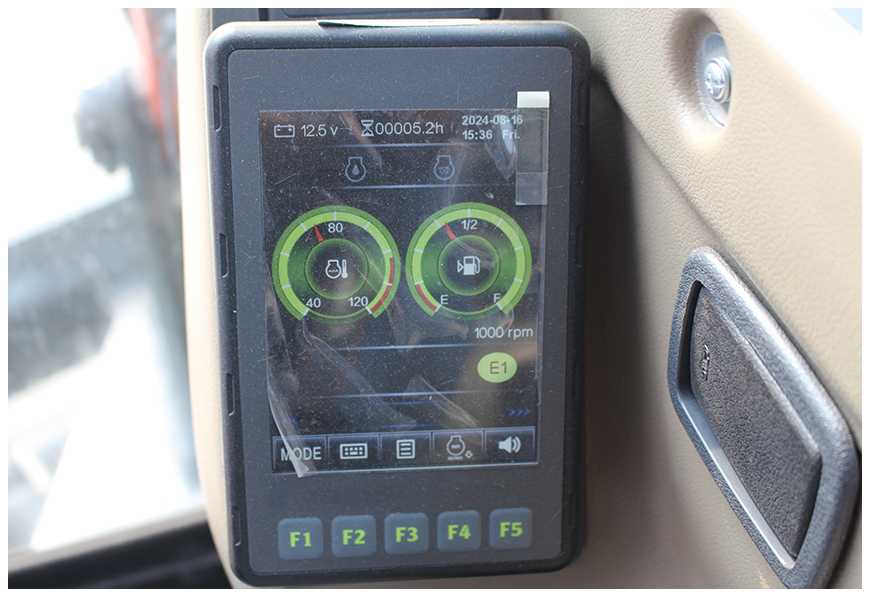

Intelligent control system
Fully electronic control handles and pedals achieve precise and convenient operation. Electronic feedback signals improve system response speed, quickly respond to customer needs, and improve work efficiency.
Multipurpose Tool Carrier
The R60 small excavator has advantages in performance, comfort, economy, convenience and after-sales service, which can meet the diverse needs of customers in the international market.
Full Specifications — R60
| Specification | US units | Metric (source) |
|---|---|---|
| Machine working weight | 13200 lb | 6000 kg |
| Bucket capacity | 3.2-6.2 ft³ | 0.09-0.175 m³ |
| Boom length | 118.1 in (9 ft 10.1 in) | 3000 mm |
| Arm length | 63 in (5 ft 3.0 in) | 1600 mm |
| Slewing speed | 9 rpm | |
| Travel speed | 2.6/1.4 mph | 4.16\2.3 km/h |
| Bucket digging force | 9892 Ibf | 44 kn |
| Arm digging force | 6519 Ibf | 29 kn |
| Cab height | 101.6 in (8 ft 5.6 in) | 2580 mm |
| Tail slewing radius | 65 in (5 ft 5.0 in) | 1650 mm |
| Counterweight level | 27.6 in (2 ft 3.6 in) | 700 mm |
| Track length | 100 in (8 ft 4.0 in) | 2540 mm |
| Track width | 74 in (6 ft 2.0 in) | 1880 mm |
| Track shoe width | 15.7 in (1 ft 3.7 in) | 400 mm |
| Minimum ground clearance | 15.7 in (1 ft 3.7 in) | 400 mm |
| Maximum digging range | 242.1 in (20 ft 2.1 in) | 6150 mm |
| Maximum digging range on the ground | 242.1 in (20 ft 2.1 in) | 6150 mm |
| Maximum digging depth | 153.1 in (12 ft 9.1 in) | 3890 mm |
| Maximum unloading height | 159.8 in (13 ft 3.8 in) | 4060 mm |
| Maximum vertical wall depth that can be dug | 119.1 in (9 ft 11.1 in) | 3025 mm |
| Engine | Yanmar 4TNV98C/4TNV94L | |
| Power | 51 hp | 38.1 KW |
| Multi-way valve | HYTEK | |
| Hydraulic pump | HYTEK | |
| Travel motor | ZHTE | |
| Slewing motor | Fujikoshi |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
