Rippa R90 Small Excavator
Manufacturers have inventory and deliver quickly. Customer service staff is online 24 hours a day.
Features

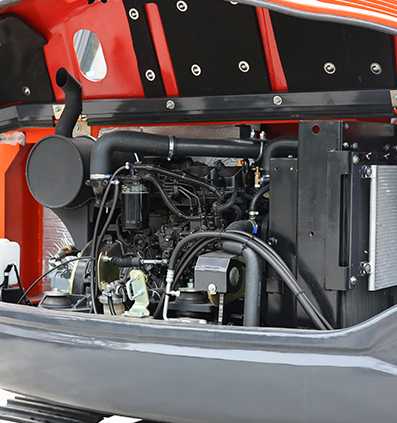

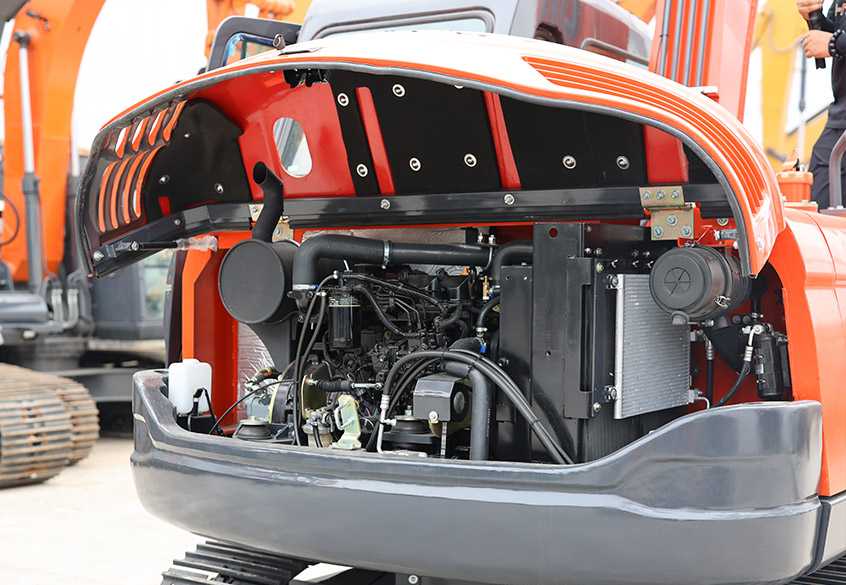

Energy-efficient engine
Equipped with YANMAR 4TNV98L engine, it provides powerful power support while maintaining efficient fuel economy. The engine has superior performance, high combustion temperature, significantly improved fuel efficiency, and environmentally friendly emissions.

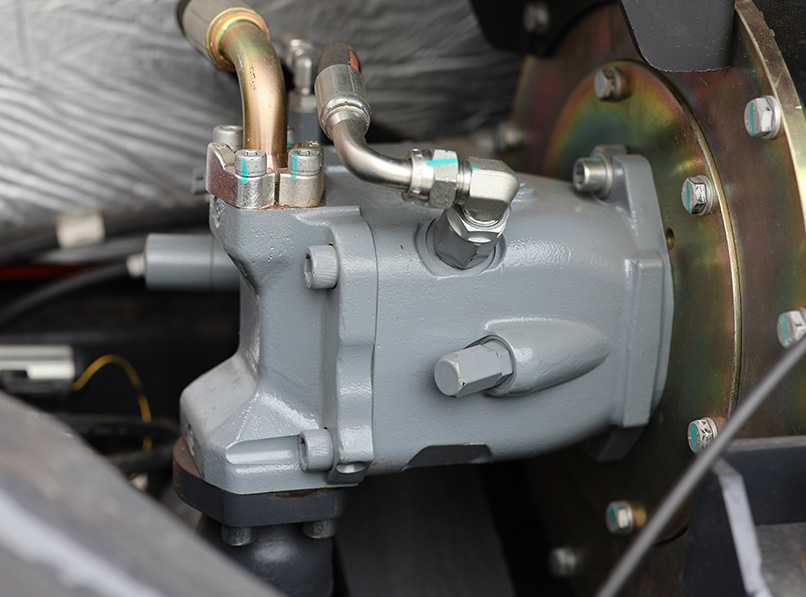

Rexroth and Doosan hydraulic pumps
The selling point of Rexroth hydraulic pumps is their high performance, precise control, environmental protection and energy saving, and global service network. They are suitable for high-end excavators and users who need complex operations, and customers who focus on high efficiency and long-term economic benefits. Doosan hydraulic pumps are more suitable for customers who need strong reliability and cost control due to their strong power, stable output, high cost performance and adaptability to harsh environments, especially in medium-sized excavators and high-load operations. Both have their own characteristics and can meet the needs of different markets and customers.

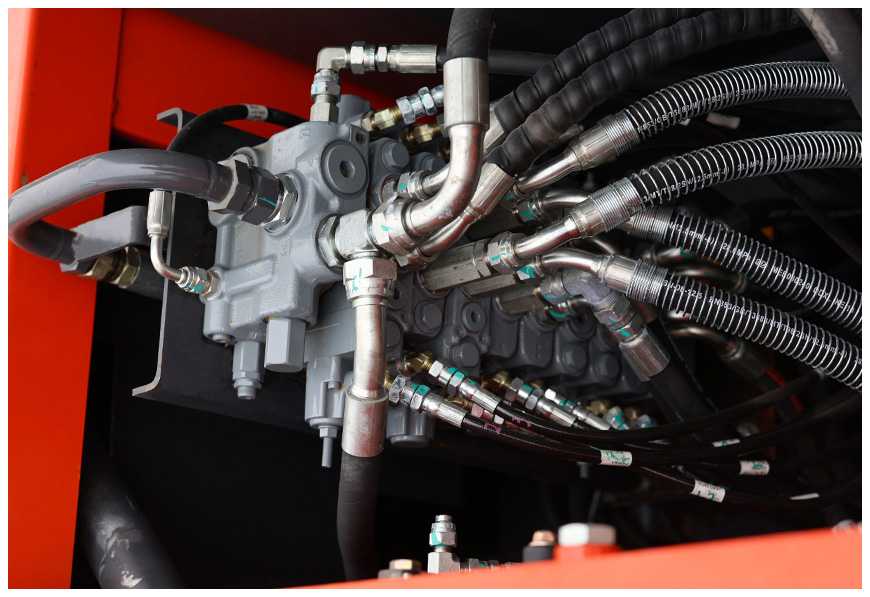

Multi-way valve
The multi-way valve allows the operator to precisely control the various hydraulic functions of the excavator, realize the combined control of multiple hydraulic channels, make the operation more flexible, thereby improving work efficiency and reducing operation time. The multi-way valve can improve the versatility of the equipment, reduce hydraulic loss and meet different work needs by distributing hydraulic oil to different actuators (such as bulldozing, digging, grabbing, etc.).
Full Specifications — R90
| Specification | US units | Metric (source) |
|---|---|---|
| Machine working weight | 18040 lb | 8200 kg |
| Bucket capacity | 9.5-11.7 ft³ | 0.27-0.33 m³ |
| Boom length | 146.5 in (12 ft 2.5 in) | 3722 mm |
| Arm length | 65.8 in (5 ft 5.8 in) | 1672 mm |
| Slewing speed | 11.6 rpm | |
| Travel speed | 1.6-2.7 mph | 2.6-4.4 km/h |
| Bucket digging force | 12814 Ibf | 57 kn |
| Arm digging force | 8768 Ibf | 39 kn |
| Tail slewing radius | 70.9 in (5 ft 10.9 in) | 1802 mm |
| Track length | 108.3 in (9 ft 0.3 in) | 2752 mm |
| Track width | 90.9 in (7 ft 6.9 in) | 2310 mm |
| Track shoe width | 17.8 in (1 ft 5.8 in) | 452 mm |
| Minimum ground clearance | 14.4 in (1 ft 2.4 in) | 367 mm |
| Maximum digging range | 21 ft 4.0 in | 6502 mm |
| Maximum digging range on the ground | 250.9 in (20 ft 10.9 in) | 6372 mm |
| Maximum digging depth | 164.3 in (13 ft 8.3 in) | 4172 mm |
| Maximum unloading height | 207 in (17 ft 3.0 in) | 5257 mm |
| Maximum vertical wall depth that can be dug | 104.8 in (8 ft 8.8 in) | 2662 mm |
| Engine | Yanmar 4TNV98L/Yanmar 4TNV98C | |
| Power | 60.3 hp | 45 KW |
| Multi-way valve | HYTEK | |
| Hydraulic pump | HYTEK | |
| Travel motor | ZHTE | |
| Slewing motor | ZHTE |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
