Rippa R06 Mini Excavator
RIPPA R06 ECO mini excavator is an ultra-quiet, ultra-compact machine for tight access and first-time owners. It focuses on shallow trenching and light property maintenance with precise control and easy transport. Ideal where low disturbance matters more than maximum output.
Watch the R06 in action
Features

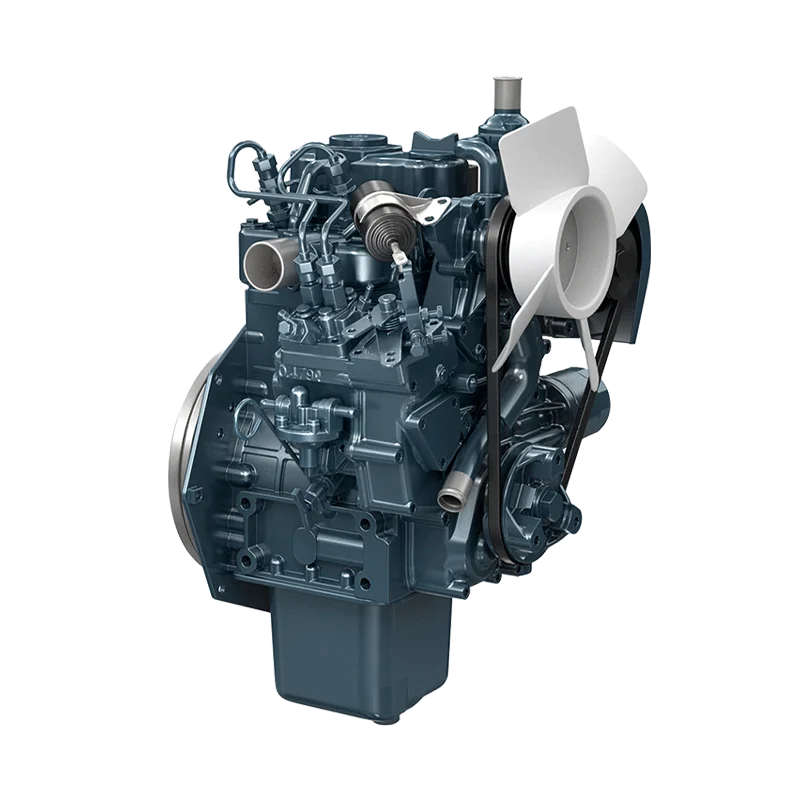

Excellent basic performance
It uses a Kubota Z482 diesel engine, which provides a powerful power of 8.2kW (11.23 horsepower) while maintaining low fuel consumption, low vibration and low noise, taking into account both environmental protection and high efficiency.

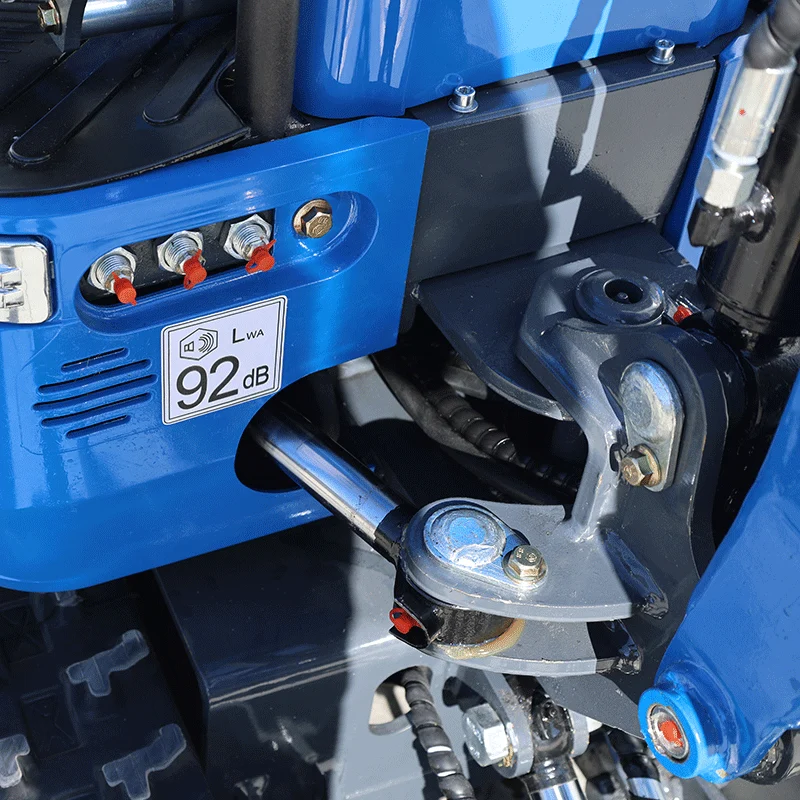

Upper arm lateral swing + yaw
The R06 boom features side swing and tilting capabilities, allowing for wall and corner excavation without frequent relocation, reducing the work envelope and making it more efficient in narrow spaces. It also ensures safer obstacle and pipeline avoidance, and more precise alignment and stable leveling. Reduced machine sway and fuel consumption improve efficiency and reduce costs, making it suitable for delicate operations in landscaping, municipal engineering, and indoor spaces.

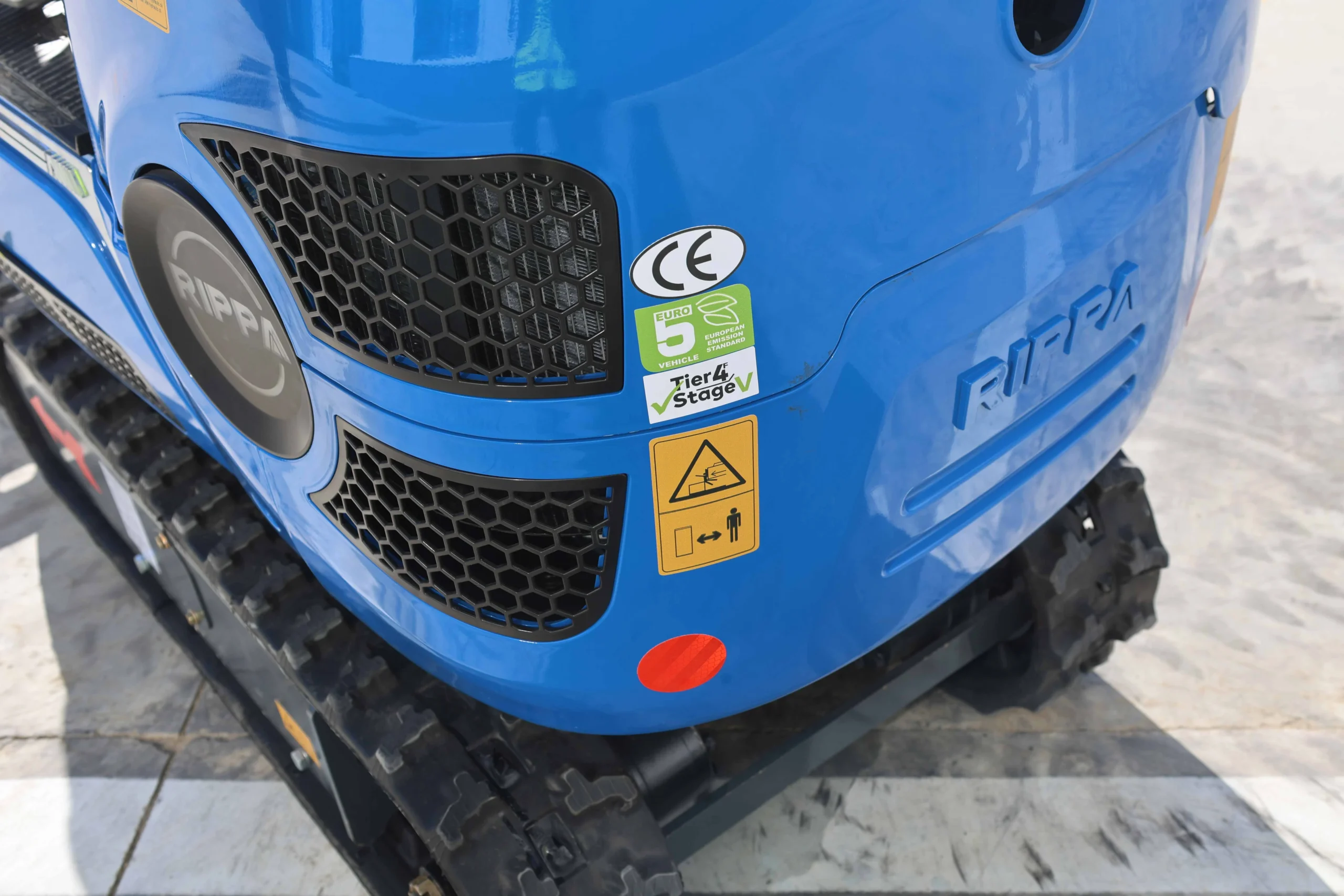

Compact size and flexible operation
The R06 mini excavator has a body width of only 747mm, making it easy to enter and exit narrow passages and doorways; its small size and high power allow for flexible relocation and efficient construction; it comes standard with an illuminated logo, providing clear visibility and high recognition at night, making operation safer; its rubber tracks protect the ground, making it suitable for landscaping, interior renovation, and urban scenarios.
Multipurpose Tool Carrier
The Rippa R06 mini excavator is compact, agile, and offers precise control; it features a Kubota Z482 engine with an 8.2kW water-cooled motor; brand-name non-slip foot pads; an adjustable seat with a seatbelt and removable headrest; and powerful headlights for safe night work.
Full Specifications — R06
| Specification | US units | Metric (source) |
|---|---|---|
| Basic parameters | ||
| Operating weight | 1,647 lb | 747kg |
| Bucket capacity | 0.494t³ | 0.014m³ |
| Travel speed low/high | 0-0.93 mph | 0-1.5km/h |
| Gradeability | 30% | |
| Ground pressure | – | |
| Maximum digging force | 2,068 lbf | 92KN |
| Maximum digging radius | 101.1 in (8 ft 5.1 in) | 2565mm |
| Maximum digging depth | 39.4 in (3 ft 3.4 in) | 1001mm |
| Maximum digging height | 88.1 in (7 ft 4.1 in) | 2236mm |
| Maximum dumping height | 61.8 in (5 ft 1.8 in) | 1569mm |
| Maximum deflection angle | 70° | |
| Track extension range | – | |
| ENGINE | ||
| Engine brand | Kubota | |
| Engine model | Z482 | |
| Maximum horsepower | 11 hp | 11.2PS |
| Maximum power | 11.0 hp | 8.2KW |
| Maximum speed | 3000rpm | |
| Displacement | 0.13 gal | 0.479L |
| Number of cylinders | 2 | |
| Cooling method | Water-cooled | |
| Engine oil change amount | 0.396 gal | 1.5L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
| Theoretical fuel consumption | 0.21-0.32 gal/h | 0.8-1.2L/h |
| Body | ||
| Transport length | – | |
| Transport width | 29.4 in (2 ft 5.4 in) | 747 |
| Transport height | 62.8 in (5 ft 2.8 in) | 1594 |
| Counterweight ground clearance | 15.8 in (1 ft 3.8 in) | 401 |
| Bucket width | 11.8 in | 300 |
| Boom length | 70.9 in (5 ft 10.9 in) | 1800 |
| Arm length | – | |
| Bulldozer blade width | – | |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
