Rippa R10 ECO Mini Excavator
🛡️ Two-Year Limited Warranty
Complete machine: 2 years or 2,000 hours.
Main assembly components: 3 years or 3,000 hours.
Whichever comes first. Service warranty also available. Call for details. See warranty terms
Specifications below are published for the Kubota Z482 version. Ask us about the B&S version.
RIPPA R10 ECO mini excavator is a homeowner-friendly starter built for practical backyard projects. It’s well suited to fence installation work and light digging with straightforward operation and easy upkeep. Ideal for seasonal property tasks and routine improvements.
Watch the R10 in action
Features
Excellent basic performance

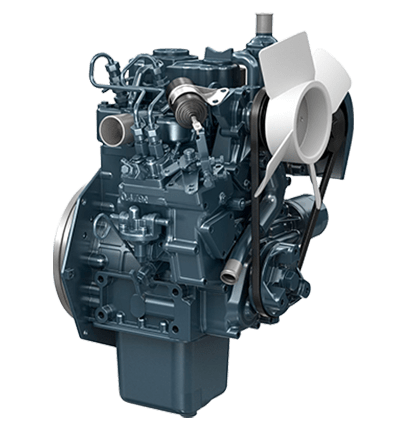

It uses a Kubota Z482 diesel engine, which provides a powerful power of 8.2kW (11.23 horsepower) while maintaining low fuel consumption, low vibration and low noise, taking into account both environmental protection and high efficiency.
Hydraulic Thumb Clamp
The R10 ECO mini excavator comes standard with a hydraulic thumb. Powered by the machine's hydraulic system, the paired thumbs are capable of precisely grabbing, picking up, and carrying rocks, gravel, wood, and irregular loads. Durable construction and a reinforced frame provide stable, reliable performance under continuous use, while a responsive hydraulic control system enhances efficiency and operator control. The compact design matches the mini excavator's reach without compromising strength, making the thumb an essential and efficient attachment for a variety of earthmoving and material handling tasks.

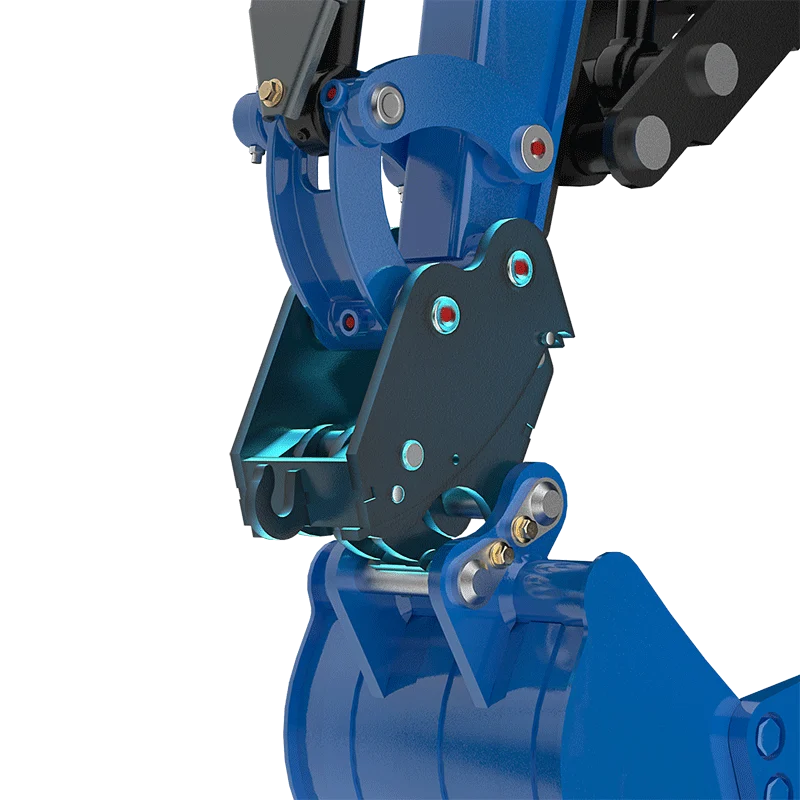

Mechanical Quick Coupler
The R10 is fitted with a factory-standard mechanical quick coupler that enables fast, tool-free attachment changes. Compatible with buckets, breakers and other implements, its rugged metal body, precision pivots and reinforced pins (visible silver bolts and red joints) ensure reliable, wear‑resistant performance. The compact U‑shaped mounting and sturdy black connection plate provide positive engagement and easy inspection, reducing downtime and boosting jobsite efficiency across digging, demolition and utility tasks.

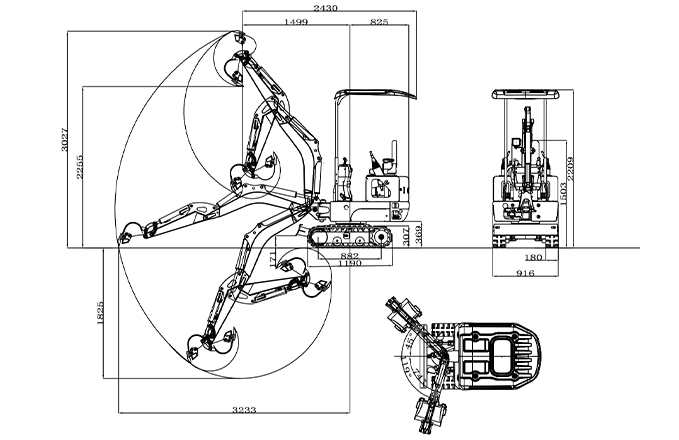

Full Specifications — R10
| Specification | US units | Metric (source) |
|---|---|---|
| Basic parameters | ||
| Machine working weight | 2,518 lb | 1142kg |
| Bucket capacity | 0.49 ft³ | 0.014m³ |
| Travel speed low/high speed | 0-0.93 mph | 0-1.5km/h |
| Gradeability | 30% | |
| Ground pressure | 3.7 psi | 2553Kpa |
| Maximum digging force | 2,068 lbf | 9.2KN |
| Maximum digging radius | 127.3 in (10 ft 7.3 in) | 3233mm |
| Maximum digging depth | 72.2 in (6 ft 0.2 in) | 1833mm |
| Maximum digging height | 118.9 in (9 ft 10.9 in) | 3021mm |
| Maximum unloading height | 88.5 in (7 ft 4.5 in) | 2247mm |
| Maximum deflection angle | 121° | |
| Track extension range | 35.4-47.2 in | 900-1200mm |
| ENGINE | ||
| Engine brand | Kubota | |
| Engine model | Z482 | |
| Maximum horsepower | 11 hp | 11.2ps |
| Maximum power | 11.0 hp | 8.2kw |
| Maximum speed | 3000rpm | |
| Displacement | 0.13 gal | 0.479L |
| Number of cylinders | 2 | |
| Cooling method | Water-cooled | |
| Engine oil change amount | 0.4 gal | 1.5L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
| Theoretical fuel consumption | 0.21-0.32 gal/h | 0.8-1.2L/h |
| Body | ||
| Transport length | 95.7 in (7 ft 11.7 in) | 2430mm |
| Transport width | 35.9 in (2 ft 11.9 in) | 912mm |
| Transport height | 86.7 in (7 ft 2.7 in) | 2201mm |
| Counterweight ground clearance | 14.2 in (1 ft 2.2 in) | 361mm |
| Bucket width | 11.8 in | 300mm |
| Boom length | 58.1 in (4 ft 10.1 in) | 1477mm |
| Arm length | 31.5 in (2 ft 7.5 in) | 800mm |
| Bulldozer blade width | 35.9-47.7 in | 912-1212mm |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
