Rippa R18 PRO Mini Excavator
🛡️ Three-Year Limited Warranty
Complete machine: 3 years or 3,000 hours.
Main assembly components: 4 years or 4,000 hours.
Whichever comes first. Service warranty also available. Call for details. See warranty terms
RIPPA R18 PRO mini excavator is reinforced for tougher ground, roots, and heavier property work. It’s designed to maintain traction and stability during demanding cleanup and land restoration tasks. Ideal for landowners who frequently handle roots, logs, and stubborn soil conditions.
Watch the R18 in action
Features

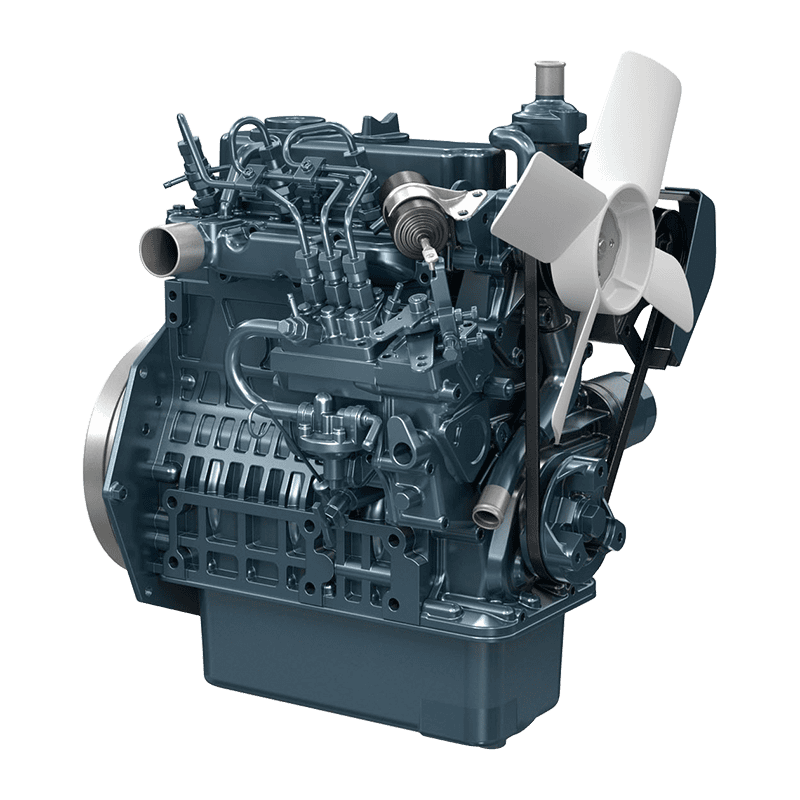

Powerful Performance
The Kubota D902 three-cylinder water-cooled diesel engine has a maximum power of 11.8kW and is powerful enough to cope with various complex working environments, ensuring continuous and efficient excavation work.

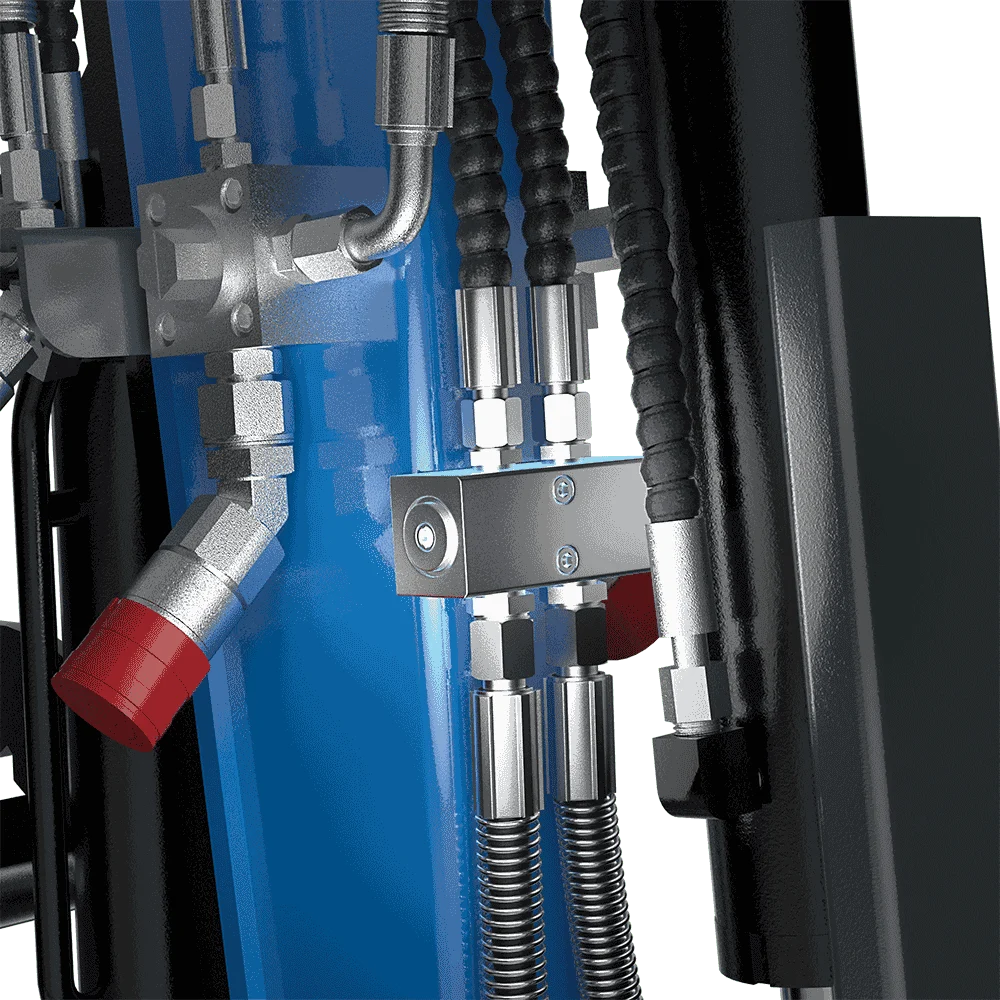

Four-Way Breaker Hose
The R18 features a durable four-way breaker hydraulic hose assembly that expands attachment versatility, enabling simultaneous hookup of multiple auxiliary tools. Built with reinforced fittings and routed return ports, the system includes a reserved mower return line for easy integration of a grass-cutting attachment. This plumbing layout simplifies connection, maintains stable oil flow, and reduces heat buildup during prolonged auxiliary use. Rugged construction resists abrasion and hose failure on tough jobs, while the dedicated mower return ensures reliable hydraulic performance for cutting applications — increasing the R18’s adaptability across landscaping and demolition tasks.

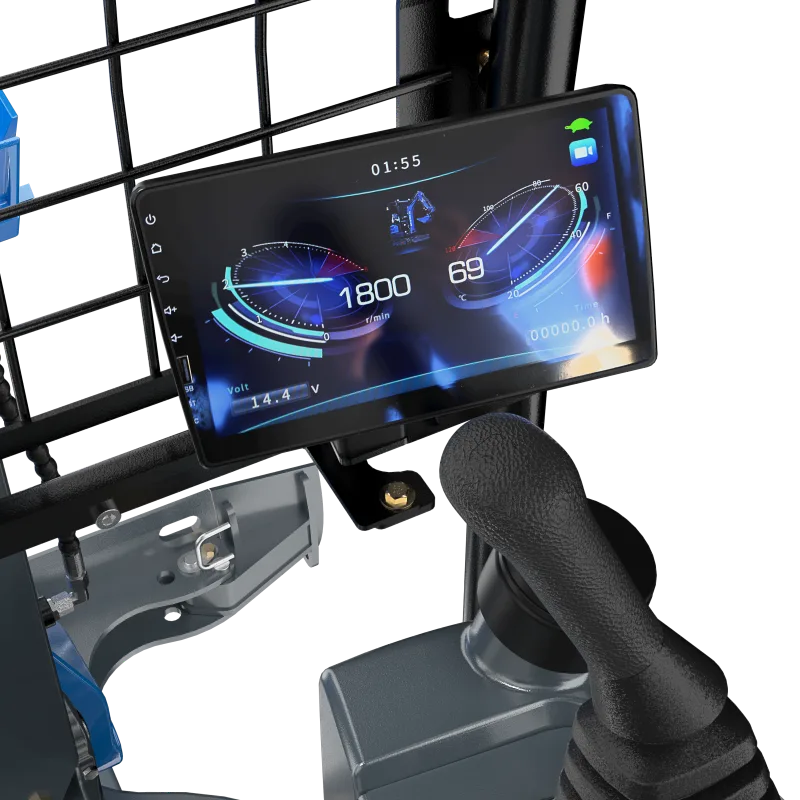

Smart cockpit high-definition large screen
The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.
Full Specifications — R18
| Specification | US units | Metric (source) |
|---|---|---|
| Basic parameters | ||
| Machine working weight | 4074 lb | 1933kg |
| Bucket capacity | 1.59 ft³ | 0.045m³ |
| Travel speed low/high speed | 0-0.93/0-1.74 mph | 0-1.5/0-2.8Km/h |
| Gradeability | 30% | |
| Ground pressure | 4.4 psi | 30.33Kpa |
| Maximum digging force | 2878 lbf | 12.8kN |
| Maximum digging radius | 156.5 in (13 ft 0.5 in) | 3975mm |
| Maximum digging depth | 95.3 in (7 ft 11.3 in) | 2420mm |
| Maximum digging height | 133.7 in (11 ft 1.7 in) | 3396mm |
| Maximum unloading height | 85.9 in (7 ft 1.9 in) | 2182mm |
| Maximum deflection angle | 111° | |
| Track extension range | 39-51.2 in | 990-1300mm |
| ENGINE | ||
| Engine brand | Kubota | |
| Engine model | D902 | |
| Maximum horsepower | 15.8 hp | 16ps |
| Maximum power | 15.8 hp | 11.8kw |
| Maximum speed | 2300rpm | |
| Displacement | 0.24 gal | 0.898L |
| Number of cylinders | 3 | |
| Cooling method | Water-cooled | |
| Engine oil change amount | 1 gal | 3.8L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
| Theoretical fuel consumption | 0.40-0.48 gal/h | 1.5-1.8L/h |
| Body | ||
| Transport length | 94.6 in (7 ft 10.6 in) | 2403mm |
| Transport width | 38.9 in (3 ft 2.9 in) | 989mm |
| Transport height | 91.4 in (7 ft 7.4 in) | 2322mm |
| Counterweight ground clearance | 19.1 in (1 ft 7.1 in) | 486mm |
| Bucket width | 15.7 in (1 ft 3.7 in) | 400mm |
| Boom length | 70.1 in (5 ft 10.1 in) | 1780mm |
| Arm length | 44.1 in (3 ft 8.1 in) | 1120mm |
| Bulldozer blade width | 39/51.1 in | 990/1300mm |
| Main pump type/model | Variable piston pump/18 | |
| Main pump brand | Taifeng Hydraulics | |
| Main pump maximum flow | 10.9 gpm | 41.4L/min |
| Multi-way valve | 9-way hydraulic control multi-way valve | |
| Multi-way valve brand | Taifeng Hydraulics | |
| Rated set pressure | 2466 psi | 17MPa |
| Maximum set pressure | 3,191 psi | 22MPa |
| Travel hydraulic motor type | LTM03CDK | |
| Travel motor brand | Likechuan | |
| Motor displacement | 11-20ml/r | |
| Slewing hydraulic motor type | Paiyi | |
| Displacement | 245ml/r | |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
