Rippa R22 PRO Mini Excavator
🛡️ Three-Year Limited Warranty
Complete machine: 3 years or 3,000 hours.
Main assembly components: 4 years or 4,000 hours.
Whichever comes first. Service warranty also available. Call for details. See warranty terms
RIPPA R22 PRO mini excavator is stability-focused for heavier, steadier work on larger properties. It suits farm construction workflows like site prep and ongoing maintenance where uptime and consistent performance matter. Ideal for users transitioning from homeowner use to semi-pro workloads.
Watch the R22 in action
Features
Excellent basic performance

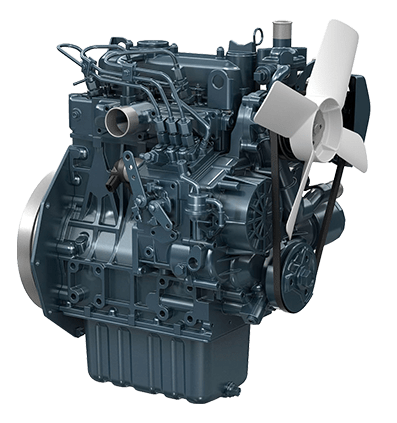

Kubota D1105 engine has become an ideal power choice for small and medium-sized excavators with its high efficiency and energy-saving fuel economy, strong and reliable power output, good durability and ability to adapt to complex working conditions. Its low noise and easy maintenance characteristics further improve the user experience, reduce operating costs, and ensure long-term efficient operation.

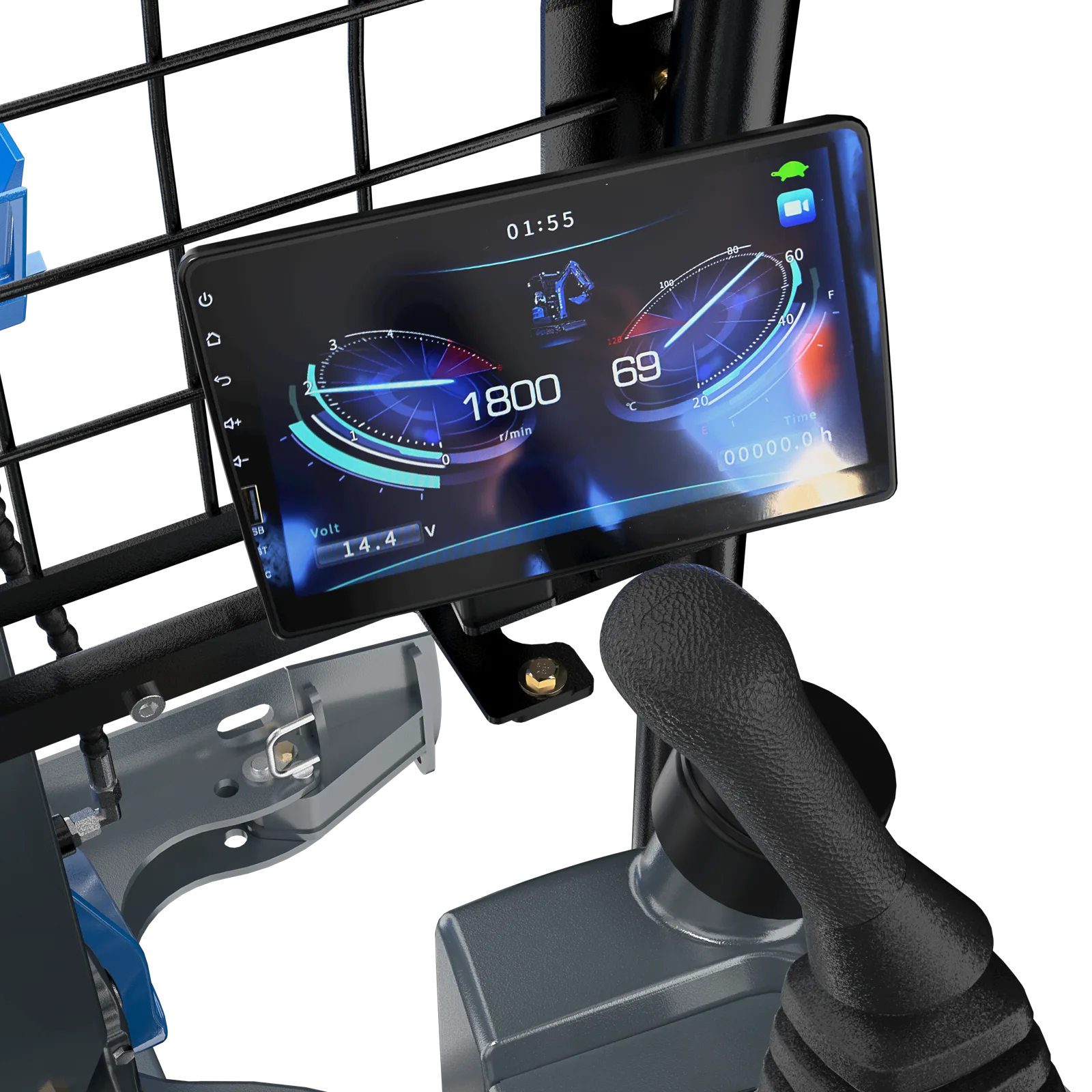

Smart display large screen
The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.
Dual-Button Control Handles
Rippa R22 dual-button control handles provide intuitive operation: the left button controls articulation/swing while the right activates the horn. Extra buttons are reserved for future function upgrades, offering flexible expansion to meet varied job needs.
Multipurpose Tool Carrier
The advantages of the R22 PRO mini excavator in terms of environmental protection, high efficiency, safety, user-friendly design, flexibility, easy maintenance, durability and high-performance parameters help attract potential buyers in the international market.

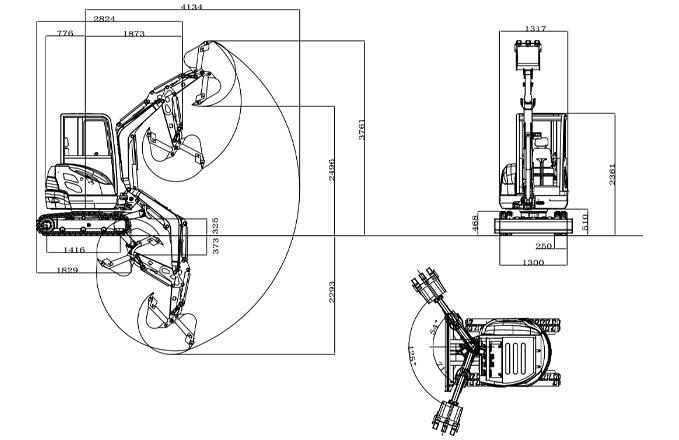

Full Specifications — R22
| Specification | US units | Metric (source) |
|---|---|---|
| Basic parameters | ||
| Machine working weight | 5366 lb | 2539kg |
| Bucket capacity | 1.9t³ | 0.054m³ |
| Travel speed low/high speed | 0-0.93/0-1.74 mph | 0-1.5/0-2.8Km/h |
| Gradeability | 30% | |
| Ground pressure | 4.8 psi | 33.4kpa |
| Maximum digging force | 4136 lbf | 18.4kn |
| Maximum digging radius | 167.5 in (13 ft 11.5 in) | 4255mm |
| Maximum digging depth | 90.3 in (7 ft 6.3 in) | 2293mm |
| Maximum digging height | 148.1 in (12 ft 4.1 in) | 3761mm |
| Maximum unloading height | 98.3 in (8 ft 2.3 in) | 2496mm |
| Maximum deflection angle | 125° | |
| Track extension range | 51.2-59.1 in | 1300-1500mm |
| ENGINE | ||
| Engine brand | Kubota | |
| Engine model | D1105 | |
| Maximum horsepower | 22.9 hp | 23.2ps |
| Maximum power | 22.9 hp | 17.1Kw |
| Maximum speed | 3000rpm | |
| Displacement | 0.3 gal | 1.123L |
| Number of cylinders | 3 | |
| Cooling method | Water-cooled | |
| Engine oil change amount | 1.1 gal | 4.2L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
| Theoretical fuel consumption | 0.34-0.40 gal/h | 1.3-1.5L/h |
| Body | ||
| Transport length | 111.2 in (9 ft 3.2 in) | 2824mm |
| Transport width | 51.2 in (4 ft 3.2 in) | 1300mm |
| Transport height | 93 in (7 ft 9.0 in) | 2361mm |
| Counterweight ground clearance | 20.1 in (1 ft 8.1 in) | 510mm |
| Bucket width | 17.7 in (1 ft 5.7 in) | 450mm |
| Boom length | 72 in (6 ft 0.0 in) | 1830mm |
| Arm length | 49.2 in (4 ft 1.2 in) | 1250mm |
| Bulldozer blade width | 51.2 in (4 ft 3.2 in) | 1300mm |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
