Rippa R319 Mini Excavator
Features
Excellent basic performance

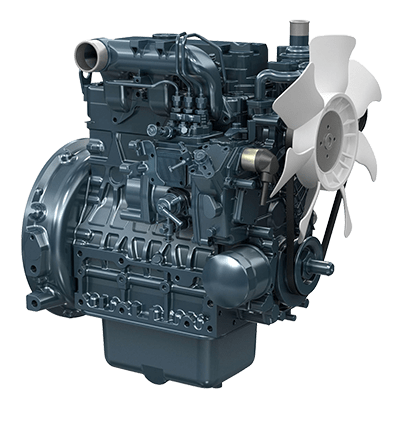

Equipped with Kubota D722 water-cooled diesel engine, the maximum horsepower is 13.97ps (10.2Kw) and the speed is up to 2500rpm, ensuring high power output.

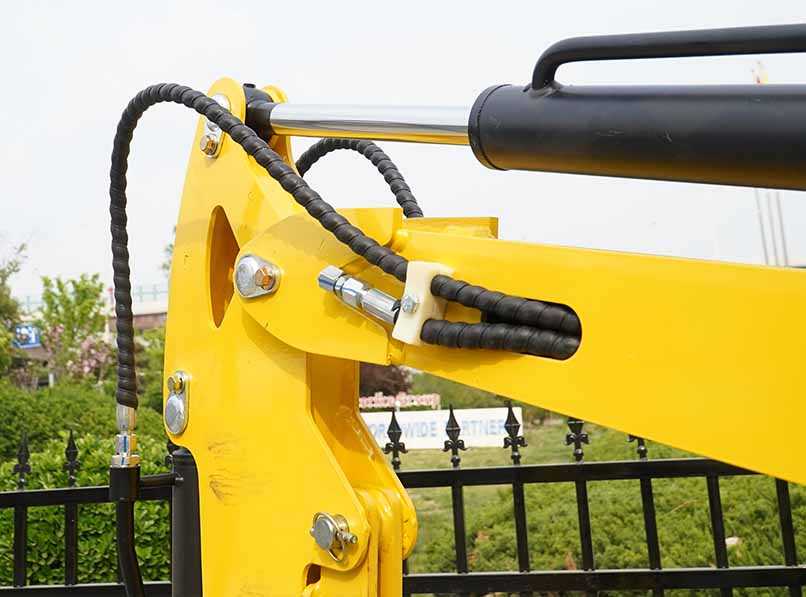

Oil pipe built-in
Built-in oil pipes can improve oil pipe protection and extend service life. At the same time, they can optimize the appearance design, enhance the aesthetics of the equipment, avoid high temperature aging, and improve the stability of the hydraulic system.

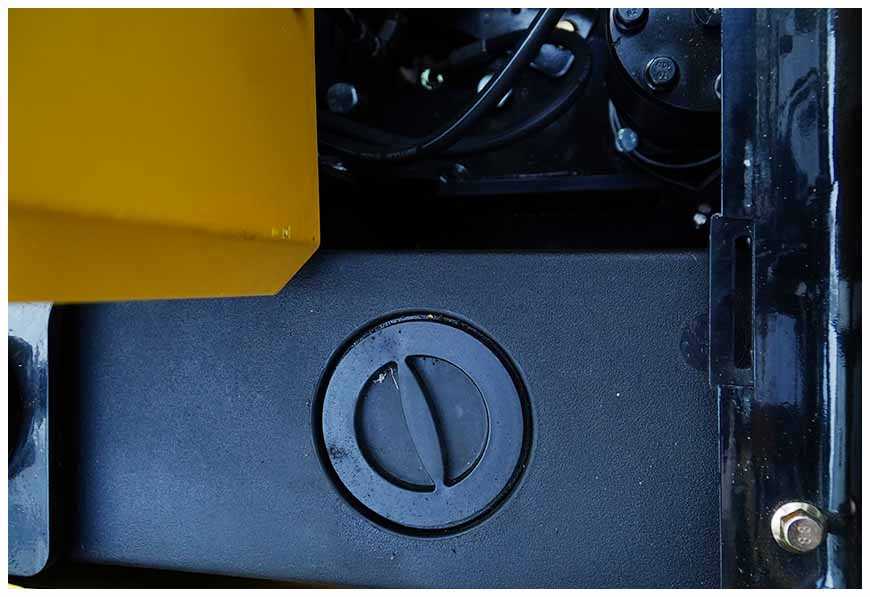

Plastic fuel tank
The whole tank has high cleanliness, no metal impurities pollution and rust problems, ensuring fuel cleanliness, while excellent anti-corrosion performance and extended service life
Full Specifications — R319
| Specification | US units | Metric (source) |
|---|---|---|
| Basic performance parameters | ||
| Working weight | 2,425 lb | 1100 kg |
| Walking speed low/high | 0-1.12 mph | 0-1.8 km/h |
| Ground specific pressure | 3.7 psi | 25.53 Kpa |

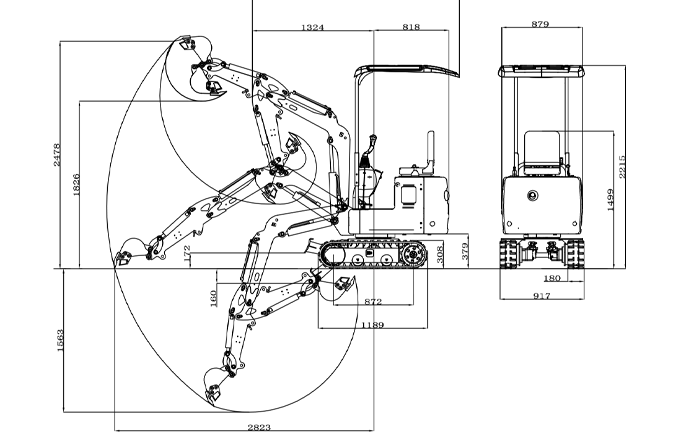

| Maximum excavation radius | 9 ft 3.1 in | 2823 mm |
| Maximum excavation depth | 5 ft 1.5 in | 1563 mm |
| Maximum excavation height | 8 ft 1.6 in | 2478 mm |
| Maximum unloading height | 5 ft 11.9 in | 1826 mm |
| Engine | ||
| Engine brand | Kubota | |
| Engine model | D722 | |
| Maximum horsepower | 13.8 hp | 13.97 ps |
| Maximum power | 13.7 hp | 10.2 Kw |
| Maximum speed | 2500 rpm | |
| Displacement | 0.19 gal | 0.719 L |
| Number of cylinders | 3 | |
| Cooling method | water cooling | |
| Engine oil replacement volume | 0.92 gal | 3.5 L |
| Fuel form | Diesel Fuel | |
| Theoretical fuel consumption | 0.29-0.40 gal/h | 1.1-1.5 L/h |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
