Rippa R32 PRO Mini Excavator
🛡️ Three-Year Limited Warranty
Complete machine: 3 years or 3,000 hours.
Main assembly components: 4 years or 4,000 hours.
Whichever comes first. Service warranty also available. Call for details. See warranty terms
RIPPA R32 PRO mini excavator is semi-pro grade for bigger excavation volumes and higher productivity. It’s well matched to pool digging and light construction workflows that demand jobsite stability and efficiency. Ideal for users stepping up to larger projects and faster delivery.
Features

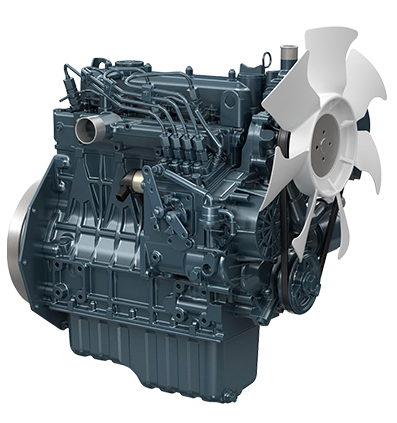

Powerful Performance
Equipped with Kubota V1505 engine, it has the characteristics of high efficiency, low noise and low emission, and complies with EPA4 and Euro 5 environmental standards. The maximum horsepower is 25ps (18.5kW), ensuring strong power output while achieving energy saving and environmental protection.

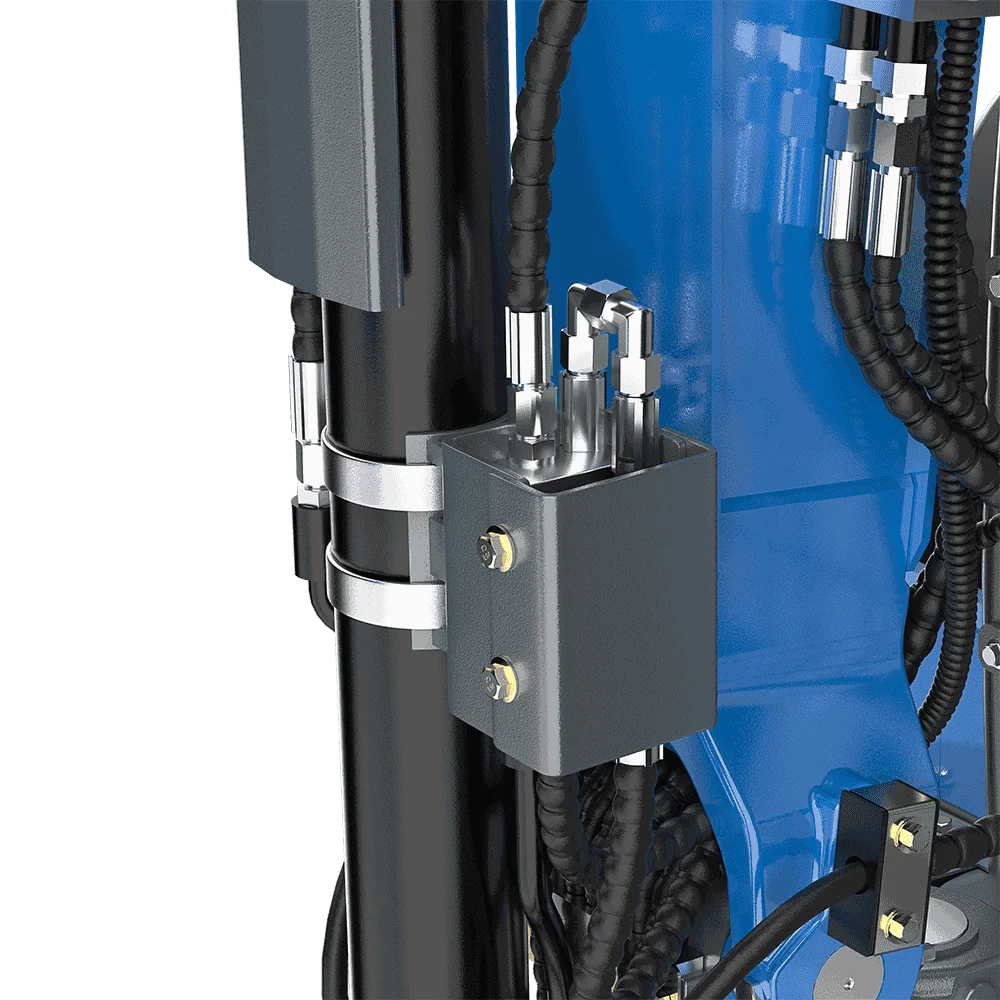

Explosion-Proof Valve
The R32’s explosion-proof valve instantly locks one-way flow if the boom cylinder feed line ruptures, cutting off hydraulic oil to prevent rapid boom drop. This reliable safety valve protects operators and equipment from crushing injuries and structural damage, ensuring secure, controlled shutdown in hose-failure scenarios.

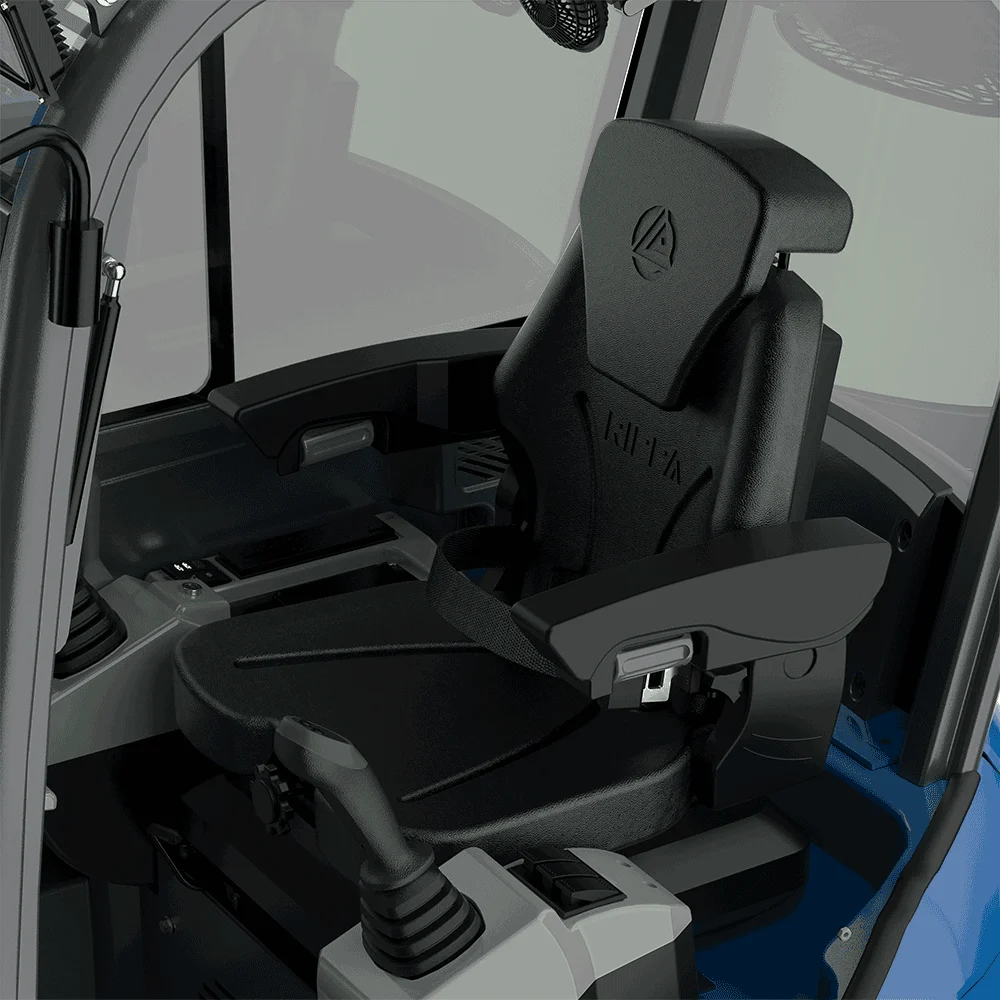

RIPPA R32 Air Seat
Experience premium comfort with the RIPPA R32 air seat. Adjustable pneumatic cushioning lets operators set the ideal pressure for posture and ride. Excellent vibration damping, shock absorption, and anti-vibration design reduce fatigue and improve safety during long shifts. Features a high-back profile with armrests and durable finish for professional cab environments.
Full Specifications — R32
| Specification | US units | Metric (source) |
|---|---|---|
| Basic parameters | ||
| Machine working weight | 7,987 lb | 3623kg |
| Bucket capacity | 2.83 ft³ | 0.08m³ |
| Travel speed low/high speed | 0-1.1/0-1.7 mph | 0-1.8/0-2.8Km/h |
| Gradeability | 30% | |
| Ground pressure | 5.2 psi | 36Kpa |
| Maximum digging force | 6070 lbf | 27kN |
| Maximum digging radius | 190.2 in (15 ft 10.2 in) | 4831mm |
| Maximum digging depth | 111.3 in (9 ft 3.3 in) | 2827mm |
| Maximum digging height | 179.6 in (14 ft 11.6 in) | 4563mm |
| Maximum unloading height | 125.2 in (10 ft 5.2 in) | 3181mm |
| Maximum deflection angle | 110° | |
| Buldozerio peilio posukio kamp | as 31° | 31° |
| ENGINE | ||
| Engine brand | Kubota | |
| Engine model | V1505 | |
| Maximum horsepower | 22.9 hp | 23.3ps |
| Maximum power | 22.9 hp | 17.1kw |
| Maximum speed | 2300rpm | |
| Displacement | 0.4 gal | 1.5L |
| Number of cylinders | 4 | |
| Cooling method | Water-cooled | |
| Engine oil change amount | 1.32 gal | 5L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
| Theoretical fuel consumption | 0.34-0.40 gal/h | 1.3-1.5L/h |
| Body | ||
| Transport length | 115 in (9 ft 7.0 in) | 2921mm |
| Transport width | 61 in (5 ft 1.0 in) | 1550mm |
| Transport height | 93.3 in (7 ft 9.3 in) | 2369mm |
| Counterweight ground clearance | 20.6 in (1 ft 8.6 in) | 522mm |
| Bucket width | 15.7 in (1 ft 3.7 in) | 400mm |
| Boom length | 86.6 in (7 ft 2.6 in) | 2220mm |
| Arm length | 65.4 in (5 ft 5.4 in) | 1620mm |
| Bulldozer blade width | 61 in (5 ft 1.0 in) | 1550mm |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
