Rippa R322L Mini Excavator
The advantages of Rippa R322L small excavator in performance, operating experience, safety, hydraulic efficiency, maintenance convenience, compact flexibility, and environmental protection and energy saving will help you attract more potential customers in the international market.
Features

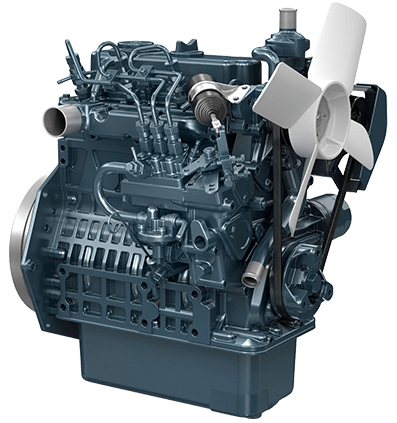

Excellent basic performance
The Kubota D902 engine delivers 11.8 kW (16.1 ps) of maximum power, ensuring ample power and reliability.

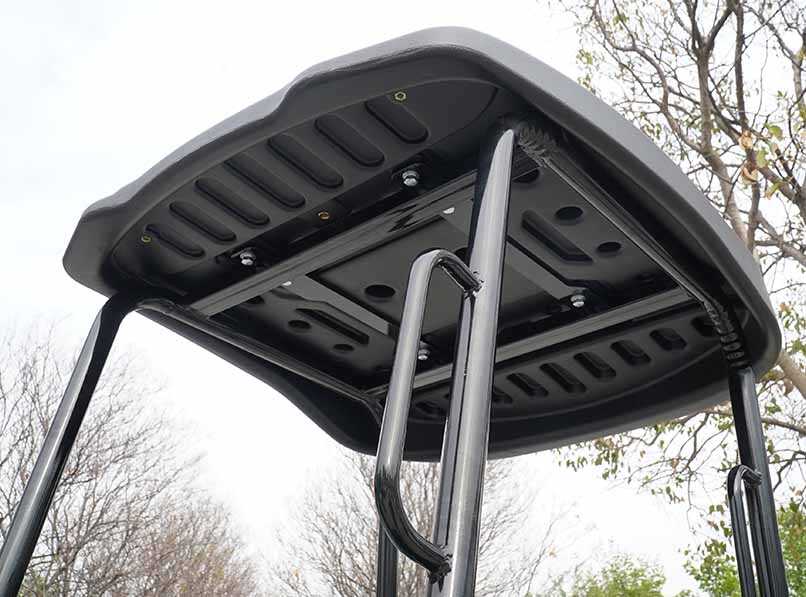

Safety by design
Rollover Protection Structure (ROPS) and Top Guard (TOPS), in compliance with international standards, ensure operator safety.

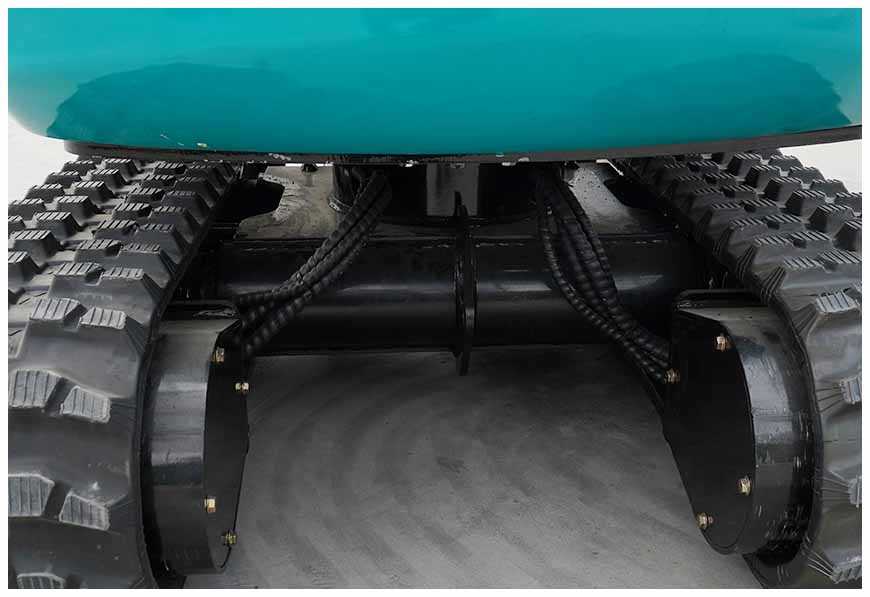

Load valve + high and low speed internal motor
Excavators equipped with load holding valves and high and low speed internal motors can provide users with a safer, more flexible and efficient operating experience, especially suitable for engineering scenarios that require long-term, high-load operations. These functions can improve operating efficiency, reduce equipment wear and tear, extend the service life of the machine, and can also cope with complex construction environments, bringing higher returns on investment.

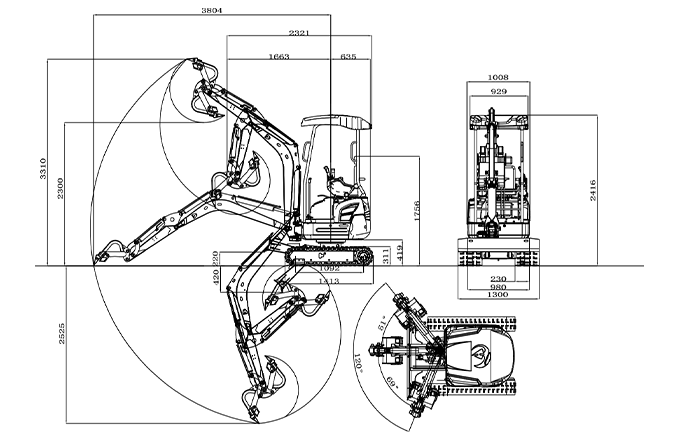

Multipurpose Tool Carrier
The advantages of Rippa R322L small excavator in performance, operating experience, safety, hydraulic efficiency, maintenance convenience, compact flexibility, and environmental protection and energy saving will help you attract more potential customers in the international market.
Full Specifications — R322L
| Specification | US units | Metric (source) |
|---|---|---|
| Basic performance parameters | ||
| Working weight | 3,730 lb | 1692 kg |
| Walking speed low/high | 0-0.93/0-1.74 mph | 0-1.5/0-2.8 km/h |
| Ground specific pressure | 4.6 psi | 31.4 Kpa |
| Maximum excavation radius | 12 ft 5.8 in | 3804 mm |
| Maximum excavation depth | 8 ft 3.4 in | 2525 mm |
| Maximum excavation height | 10 ft 10.3 in | 3310 mm |
| Maximum unloading height | 7 ft 6.6 in | 2300 mm |
| Engine | ||
| Engine brand | Kubota | |
| Engine model | D902 | |
| Maximum horsepower | 15.8 hp | 16 ps |
| Maximum power | 15.8 hp | 11.8 Kw |
| Maximum speed | 2300 rpm | |
| Displacement | 0.24 gal | 0.898 L |
| Number of cylinders | 3 | |
| Cooling method | water cooled | |
| Engine oil change amount | 1.00 gal | 3.8 L |
| Fuel form | Diesel | |
| Fuel grade | 0/-10 | |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
