Rippa R328 Mini Excavator
RIPPA R328 small excavator has become an ideal choice to meet the needs of various users with its excellent performance, efficient operating experience, safe and comfortable driving environment and reliable and durable design.
Features

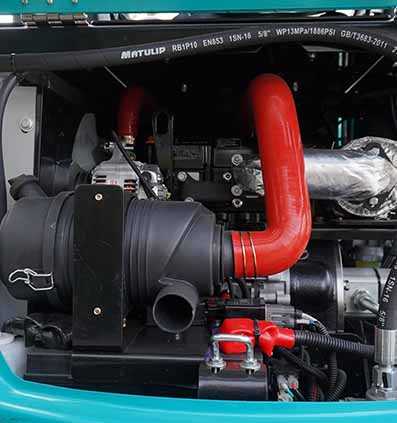

YANMAR Engine
Equipped with YANMAR 374F engine, it provides a strong output power of 10.8kw, ensuring efficient operation. The compact design takes into account the environmental protection characteristics of high performance and low fuel consumption, low vibration and low noise.

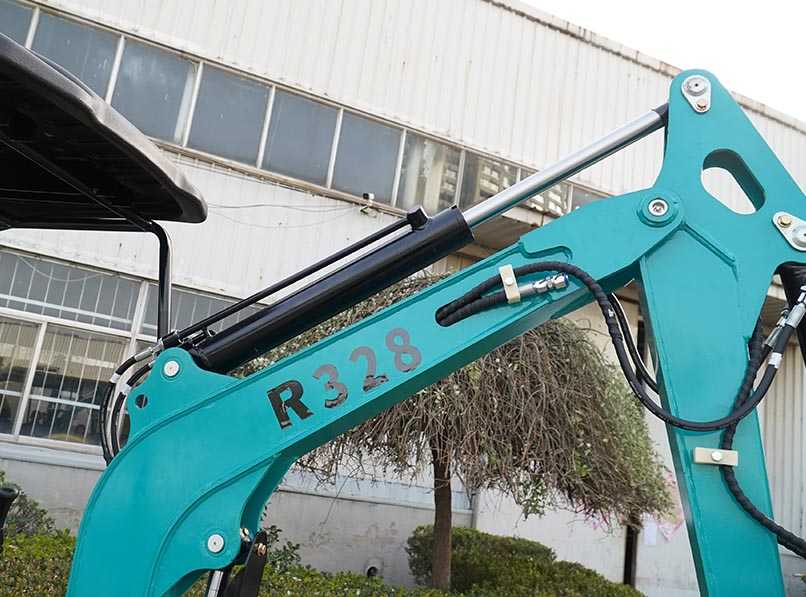

One-piece forged cylinder rod
The big arm is designed with an integrated forged cylinder rod, which improves accuracy and is not easy to break, providing greater lifting force and digging range. Large-capacity buckets significantly improve excavation efficiency.
Reliable working performance
New chassis structure design, using thickened new crawler, improve wear resistance, pressure resistance and anti-skid performance, large body size, strong working stability
Multipurpose Tool Carrier
RIPPA R328 small excavator has become an ideal choice to meet the needs of various users with its excellent performance, efficient operating experience, safe and comfortable driving environment and reliable and durable design.
Full Specifications — R328
| Specification | US units | Metric (source) |
|---|---|---|
| Basic performance parameters | ||
| Working weight | 3,230 lb | 1465 kg |
| Walking speed low/high | 0-0.93 mph | 0-1.5 km/h |
| Maximum power | 33.5 hp | 25 Kw |

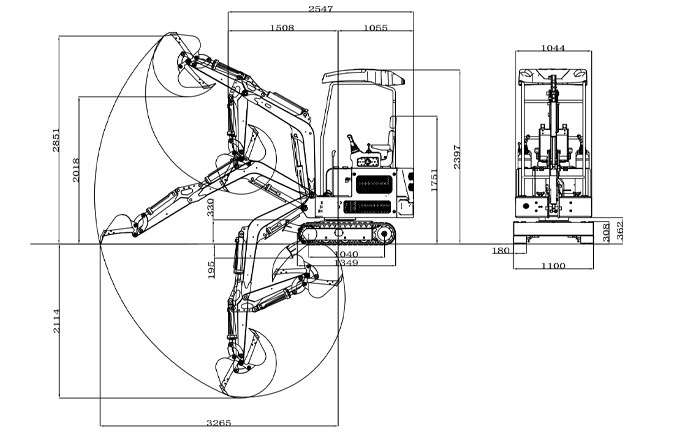

| Maximum excavation radius | 10 ft 8.5 in | 3265 mm |
| Maximum excavation depth | 6 ft 11.2 in | 2114 mm |
| Maximum excavation height | 9 ft 4.2 in | 2851 mm |
| Maximum unloading height | 6 ft 7.4 in | 2018 mm |
| Engine | ||
| Engine brand | Changchai | |
| Engine model | 390 | |
| Maximum horsepower (hp) | 33.5 | |
| Maximum power | 33.5 hp | 25 Kw |
| Maximum speed | 2400 rpm | |
| Displacement | 0.48 gal | 1.813 L |
| Number of cylinders | 3 | |
| Cooling method | water cooling | |
| Engine oil change amount | 1.19 gal | 4.5 L |
| Fuel form | Diesel Fuel | |
| Theoretical fuel consumption | 0.34-0.40 gal/h | 1.3-1.5 L/h |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
