Rippa R330 Mini Excavator
The R330 mini excavator has won the trust of global partners with its environmentally friendly and efficient power, excellent excavation performance, comfortable operating experience, intelligent and convenient control, sturdy and durable design, multiple safety guarantees, flexible adaptability to working conditions, and compliance with high international standards.
Features

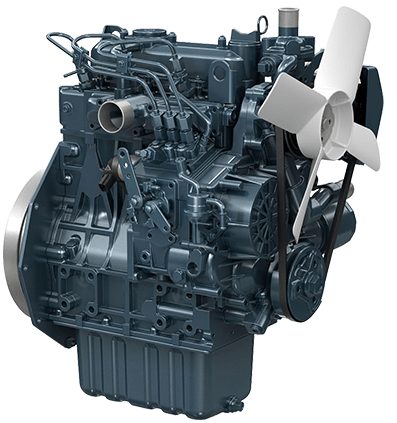

Kubota Engine
Equipped with an environmentally friendly engine that complies with Euro V and EPA emission standards, it is energy-saving and low-noise, can achieve high power output, high fuel efficiency, economical and practical, and reduces operating costs.

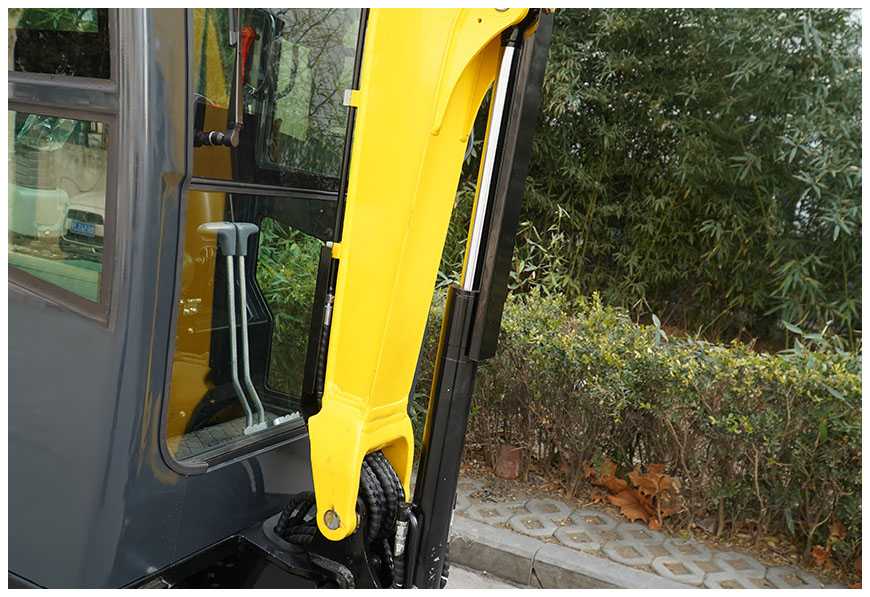

One-piece casting arm
The one-piece casting process can greatly improve the overall strength and rigidity of the boom, avoiding the stress concentration at the welded joints that are prone to occur in traditional spliced structures. By using optimized design, the overall weight can be reduced while ensuring strength, thereby improving the excavator's load capacity and operational flexibility.

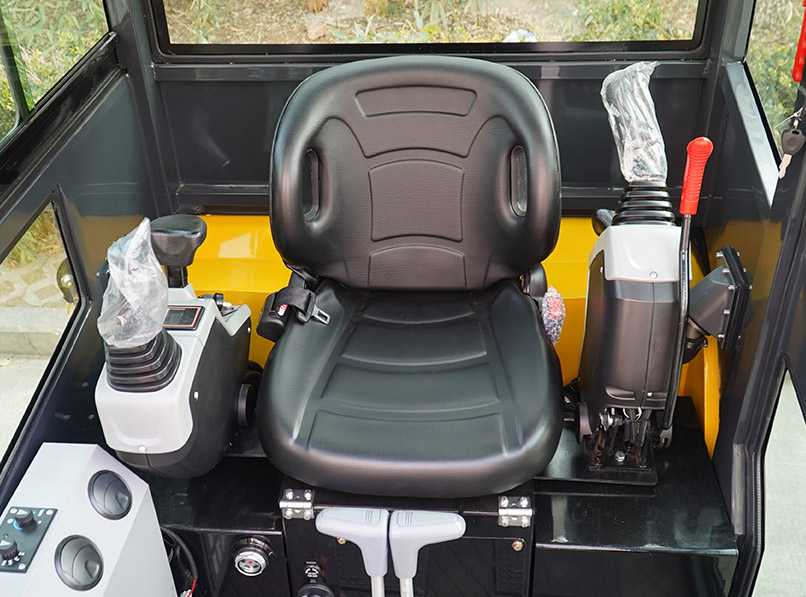

Wrap-around seat
Equipped with shock-absorbing seats and air conditioning system, it provides a comfortable driving environment and reduces operator fatigue. Semi-enclosed cab design effectively reduces noise and vibration
Comply with international standards
The R330 mini excavator has won the trust of global partners with its environmentally friendly and efficient power, excellent excavation performance, comfortable operating experience, intelligent and convenient control, sturdy and durable design, multiple safety guarantees, flexible adaptability to working conditions, and compliance with high international standards.
Full Specifications — R330
| Specification | US units | Metric (source) |
|---|---|---|
| Basic performance parameters | ||
| Working weight | 4,870 lb | 2209 kg |
| Walking speed low/high | 0-0.93 mph | 0-1.5 km/h |
| Ground specific pressure | 4.6 psi | 31.43 Kpa |
| Maximum excavation radius | 13 ft 7.1 in | 4143 mm |
| Maximum excavation depth | 7 ft 10.2 in | 2392 mm |
| Maximum excavation height | 11 ft 11.1 in | 3635 mm |
| Maximum unloading height | 7 ft 9.6 in | 2377 mm |
| Engine | ||
| Engine brand | Kubota | |
| Engine model | D1105 | |
| Maximum horsepower (hp) | 22.9 | |
| Maximum power | 22.9 hp | 17.1 Kw |
| Maximum speed | 3000 rpm | |
| Displacement | 0.30 gal | 1.123 L |
| Number of cylinders | 3 | |
| Cooling method | water cooling | |
| Engine oil change requirement | 1.06 gal | 4 L |
| Fuel form | Diesel Fuel | |
| Theoretical fuel consumption | 0.34-0.40 gal/h | 1.3-1.5 L/h |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
