Mini Excavators
Rippa R350 Mini Excavator
Call for price
5,747 lbOperating Weight
5,472 lbMachine Weight
22.9 hpMaximum power
9 ft 7.2 inMaximum digging depth
Kubota V1505Engine
Features
Engineered performance

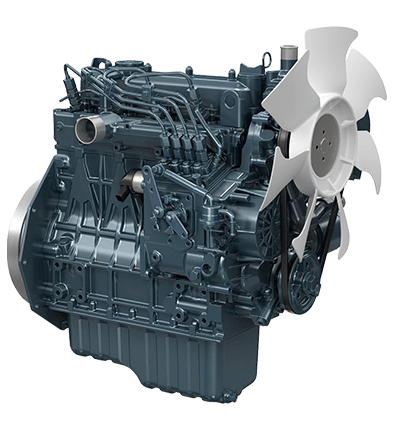

High-performance engine
Equipped with Kubota V1505 engine, it has the characteristics of high efficiency, low noise and low emission, meets EPA4 and Euro 5 environmental protection standards, and has a maximum horsepower of 25ps (18.5kW), ensuring strong power output while achieving energy saving and environmental protection
Design detail

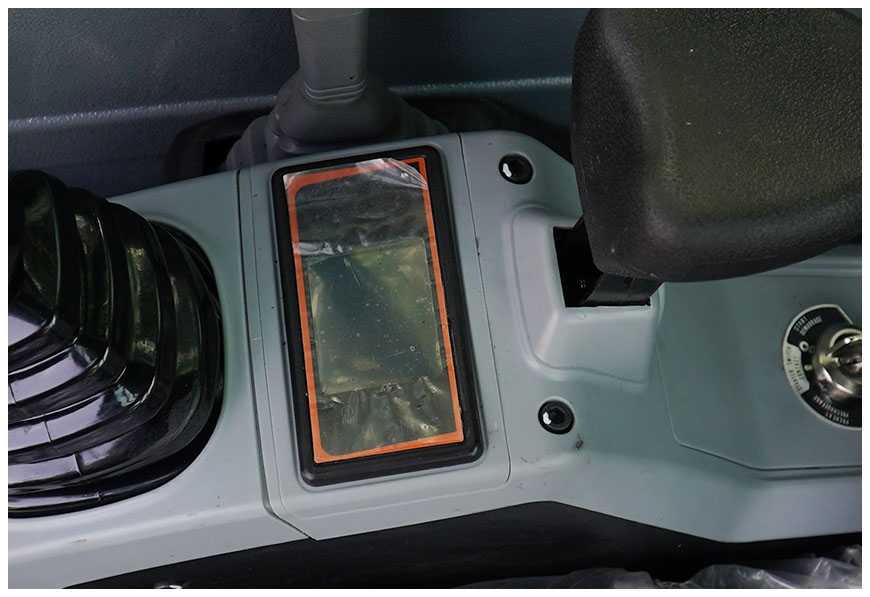

Electronic Display
Various information can be accurately confirmedeven at night.The machine's operating status andabnormal conditions will be notified to the userthrough the LCD screen and alarm.

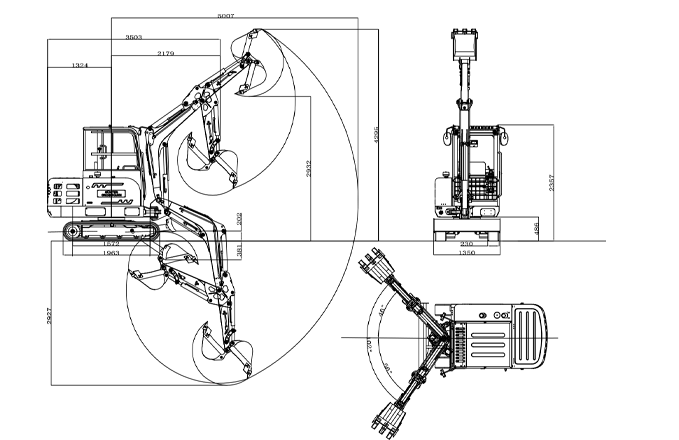

Full Specifications — R350
| Specification | US units | Metric (source) |
|---|---|---|
| Basic performance parameters | ||
| Working weight | 5,747 lb | 2607kg |
| Walking speed low/high | 0-0.93 mph | 0-1.5 km/h |
| Ground specific pressure | 5.3 psi | 36.4 Kpa |
| Maximum excavation radius | 16 ft 5.1 in | 5007 mm |
| Maximum excavation depth | 9 ft 7.2 in | 2927 mm |
| Maximum excavation height | 14 ft 1.1 in | 4295 mm |
| Maximum unloading height | 9 ft 7.4 in | 2932 mm |
| Engine | ||
| Engine brand | Kubota | |
| Engine model | V1505 | |
| Maximum horsepower | 22.6 hp | 22.9 ps |
| Maximum power | 22.9 hp | 17.1 Kw |
| Maximum speed | 2300 rpm | |
| Displacement | 0.40 gal | 1.5 L |
| Number of cylinders | 4 | |
| Cooling method | water cooled | |
| Engine oil change amount | 1.32 gal | 5 L |
| Fuel form | Diesel | |
| Theoretical fuel consumption | 0.34-0.40 gal/h | 1.3-1.5 L/h |
Specifications courtesy of Rippa, converted to US units. Confirm critical dimensions with us before purchase.
